Battery cable/starter cable for BMW MINI F56 One (2021)

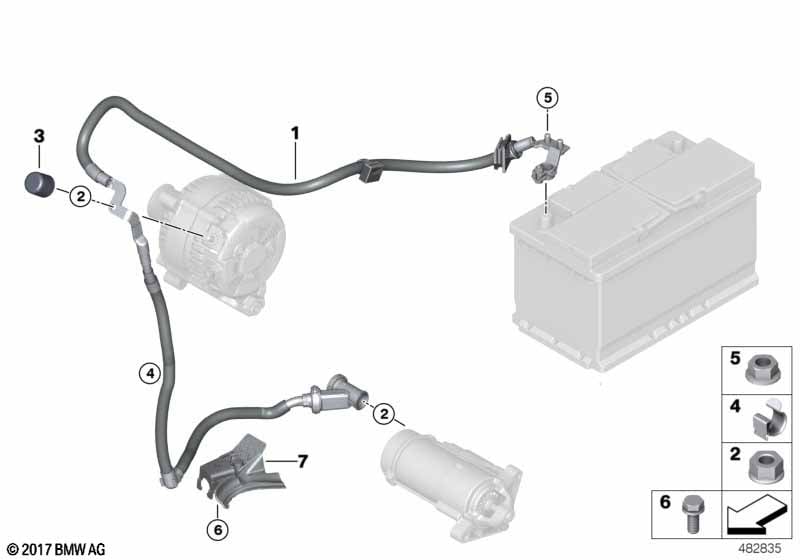

This Battery cable/starter cable technical drawing provides a detailed breakdown of the assembly for the MINI F56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable/starter cable | 1 | 12428654632 | Shop at ECS Tuning | ||||||
| 02 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Protection cap | 1 | 12527567099 | $1.68 | Shop at ECS Tuning | |||||
| 04 | Cable clamp | 1 | 03/2025 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 04 | Clip | 15-19 | 1 | 07147568538 | $3.49 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8-A2-70 | 1 | 07119904920 | $1.29 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 12527645649 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 One Battery cable/starter cable?
- This technical diagram illustrates the Battery cable/starter cable within the Engine electrical system group for the MINI F56 One produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Battery cable/starter cable (Part #12428654632).
- Which models use the hardware listed in this Battery cable/starter cable?
- The hardware and components featured in the Battery cable/starter cable are specific to the MINI F56 One produced during 2021. These technical specifications ensure that parts like the Battery cable/starter cable (12428654632) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable/starter cable assembly?
- Each item in the Battery cable/starter cable corresponds to the numbered list below the illustration. For the MINI F56 One, you can identify the Battery cable/starter cable by locating its position on the schematic, which then links to the official BMW part number 12428654632 for the Engine electrical system section.
