Control unit box for BMW 1 Series F40 116i (2024)

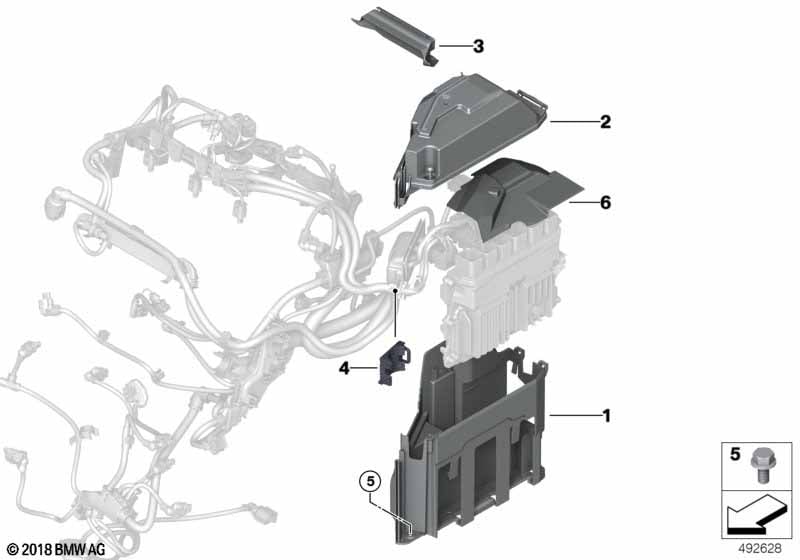

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket, control unit | 1 | 12908581370 | Shop at ECS Tuning | ||||||
| 02 | Cover | 1 | 12908581751 | Shop at ECS Tuning | ||||||
| 03 | Cable duct, bottom part | 1 | 12908606008 | Shop at ECS Tuning | ||||||
| 04 | Cover lid | 1 | 12908675566 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119904124 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 116i Control unit box?
- This technical diagram illustrates the Control unit box within the Engine electrical system group for the 1 Series F40 116i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Bracket, control unit (Part #12908581370).
- Which models use the hardware listed in this Control unit box?
- The hardware and components featured in the Control unit box are specific to the 1 Series F40 116i produced during 2024. These technical specifications ensure that parts like the Bracket, control unit (12908581370) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit box assembly?
- Each item in the Control unit box corresponds to the numbered list below the illustration. For the 1 Series F40 116i, you can identify the Bracket, control unit by locating its position on the schematic, which then links to the official BMW part number 12908581370 for the Engine electrical system section.
