Engine wiring harness for BMW MINI Clubman F54 Cooper (2019)

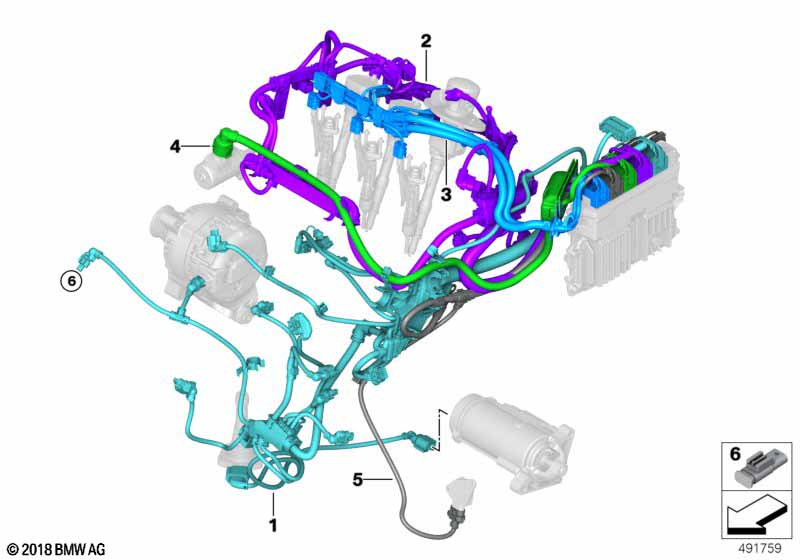

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12518742681 | Shop at ECS Tuning | ||||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=No S2TBA=No S2TFA=No |
|||||||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12518742680 | Shop at ECS Tuning | ||||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 12518678972 | Shop at ECS Tuning | ||||||
| 03 | Cable harness injection valve/ignition | 1 | 12518678974 | Shop at ECS Tuning | ||||||
| 04 | Wiring loom, eng., Valvetronic servomtr | 1 | 12518678976 | Shop at ECS Tuning | ||||||
| 05 | wiring harness, engine trans. module | HS-2WD | 1 | 12538678964 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=Yes S2TBA=Yes S2TFA=Yes |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=Yes S2TBA=Yes S2TFA=No |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=Yes S2TBA=No S2TFA=Yes |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=Yes S2TBA=No S2TFA=No |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=No S2TBA=Yes S2TFA=Yes |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=No S2TBA=Yes S2TFA=No |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Sport automatic transmission and Steptronic with twin-clutch gearbox |
S205A=No S2TBA=No S2TFA=Yes |
|||||||||
| 05 | wiring harness, engine trans. module | AUT | 1 | 12538485710 | Shop at ECS Tuning | |||||
| For vehicles with Exhaust emission standards EU6 RDE |
S1DEA=No |
|||||||||
| 06 | Dummy plug | 1 | 12528687746 | Shop at ECS Tuning | ||||||
