Flow heater electr. for BMW 1 Series F40 118d (2024)

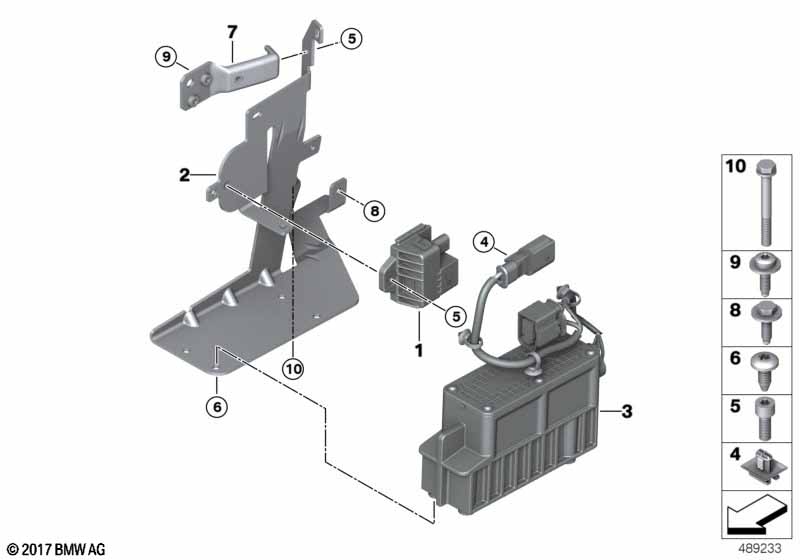

This Flow heater electr. technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission and Sport automatic transmission |
S205A=No S2TBA=No |
|||||||||
| 01 | Control unit electric auxiliary heater | 1 | 12218596873 | Shop at ECS Tuning | ||||||
| 02 | Bracket for electric circulation heater | 1 | 12218597077 | Shop at ECS Tuning | ||||||
| 03 | Electric aux.heater, engine compartment | 1 | 12218597047 | Shop at ECS Tuning | ||||||
| 04 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| 05 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Screw self-tapping | M6X14,5 ZNS3 | 4 | 07146967731 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Bracket, aux. radiator, upper left | 1 | 51747325045 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X20 | 1 | 07119908004 | Shop at ECS Tuning | |||||
| 09 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X55-Z1 | 1 | 07119904526 | $0.56 | Shop at ECS Tuning | ||||
