Sensors for BMW 7 Series E38 740i (2001)

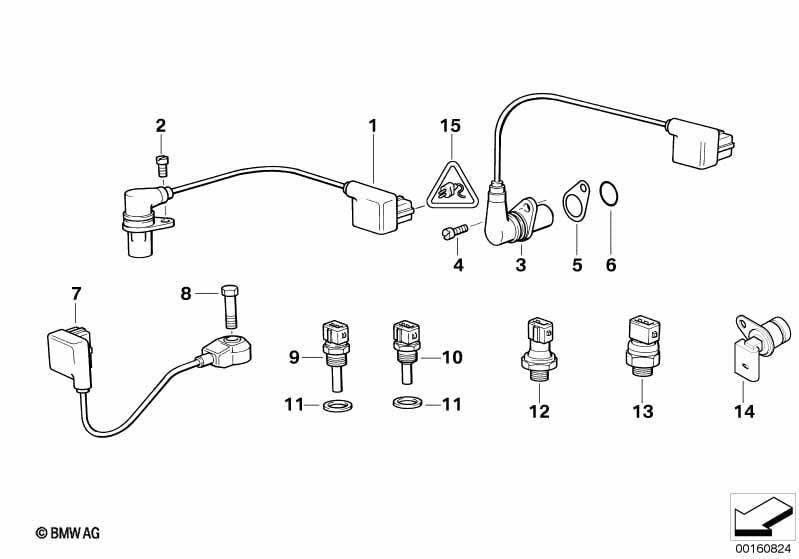

This Sensors technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fillister-head screw | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 03 | Camshaft position sensor | 2 | 09/1998 | 12147539166 | $116.05 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CRANKSHAFT POSITION/RPM SENSOR |
||||||||||
| 05 | Intermediate plate | 2 | 12141742693 | $2.48 | Shop at ECS Tuning | |||||
| 06 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 07 | Ping Sensor | 2 | 09/1997 | 13627568421 | $90.58 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X30-ZN | 4 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 12 | Oil pressure switch | M12X1,5 | 1 | 09/1997 | 12618611273 | Shop at ECS Tuning | ||||
| 15 | Socket housing | 2 POL. | 1 | 12521427221 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
