Engine wiring harness for BMW 5 Series E39 540iP (2000)

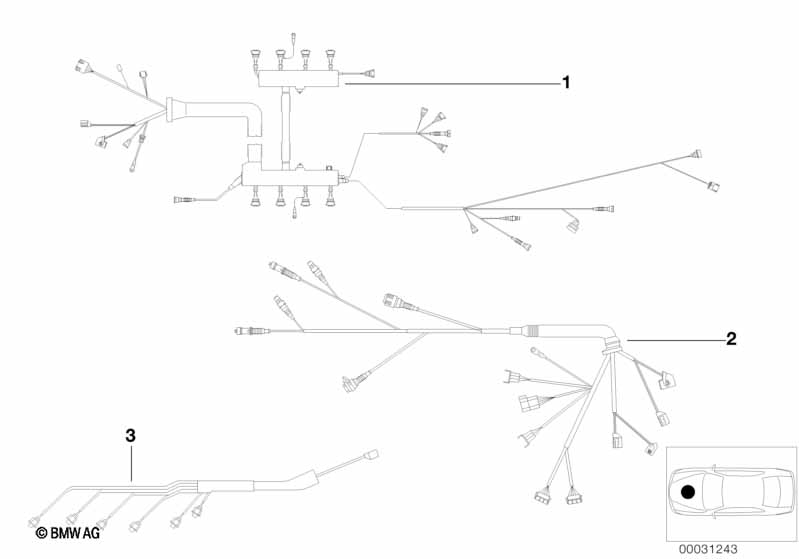

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine wiring harness, engine module | 1 | 12511709421 | $709.58 | Shop at ECS Tuning | |||||
| 01 | Engine wiring harness, engine module | 1 | 09/1999 | 12517503647 | $709.58 | Shop at ECS Tuning | ||||
| 02 | wiring harness, engine trans. module | 1 | 09/1999 | 12517503941 | $362.78 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540iP Engine wiring harness?
- This technical diagram illustrates the Engine wiring harness within the Engine electrical system group for the 5 Series E39 540iP produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Engine wiring harness, engine module (Part #12511709421).
- Which models use the hardware listed in this Engine wiring harness?
- The hardware and components featured in the Engine wiring harness are specific to the 5 Series E39 540iP produced during 2000. These technical specifications ensure that parts like the Engine wiring harness, engine module (12511709421) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine wiring harness assembly?
- Each item in the Engine wiring harness corresponds to the numbered list below the illustration. For the 5 Series E39 540iP, you can identify the Engine wiring harness, engine module by locating its position on the schematic, which then links to the official BMW part number 12511709421 for the Engine electrical system section.
