Battery cable for BMW 4 Series G26 Gran Coupé M440i (2024)

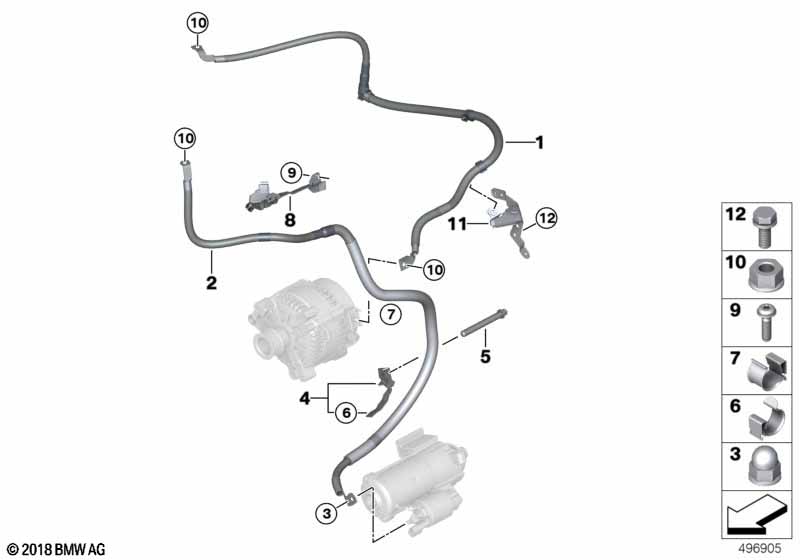

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable alternator-base B+ | 1 | 12428483819 | Shop at ECS Tuning | ||||||
| 02 | Cable, start motor supp point B+ | 1 | 12428485064 | Shop at ECS Tuning | ||||||
| 03 | Cap nut | M8 | 1 | 12528583524 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 12528514042 | Shop at ECS Tuning | ||||||
| 05 | Torx bolt | M12X100-8.8ZNS3 | 1 | 23007565047 | Shop at ECS Tuning | |||||
| 06 | Cable clamp | D=19-24/B=5 | 1 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
| 07 | Cable holder | 1 | 07147590403 | Shop at ECS Tuning | ||||||
| 08 | Holder | 1 | 12528581362 | Shop at ECS Tuning | ||||||
| 09 | Screw | 6X20 | 2 | 07129907489 | Shop at ECS Tuning | |||||
| 10 | Flange nut | M8 | 3 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 11785A189F9 | Shop at ECS Tuning | ||||||
| 11 | Metal bracket | 1 | 12428685972 | Shop at ECS Tuning | ||||||
| 12 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning |
