Engine wiring harness motor module 2 for BMW 4 Series G22 Coupé 430i (2024)

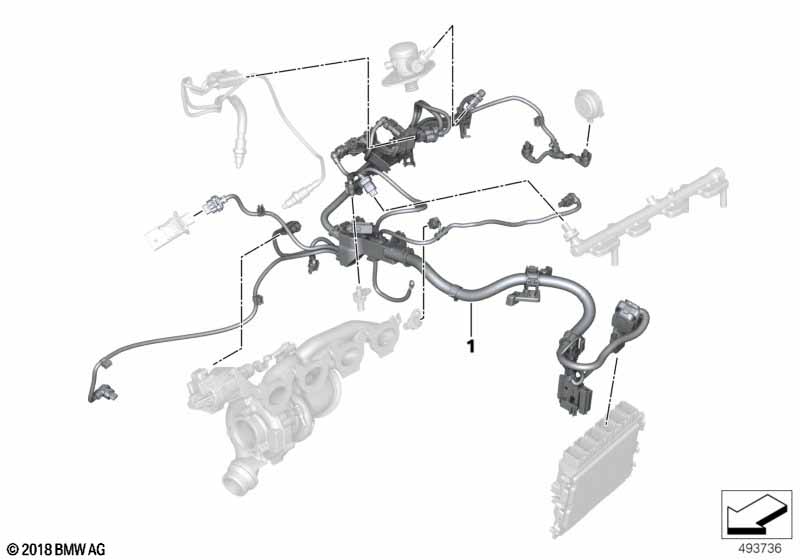

This Engine wiring harness motor module 2 technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Energy recovery system |
S1CEA=No |
||||||||
| For vehicles with Exhaust technology C6B RDE and Additional contents rde |
S1DDA=No S1DZA=No |
|||||||||
| 01 | Engine wiring harness motor module 2 | 1 | 12515A01D59 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 430i Engine wiring harness motor module 2?
- This technical diagram illustrates the Engine wiring harness motor module 2 within the Engine electrical system group for the 4 Series G22 Coupé 430i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Engine wiring harness motor module 2 (Part #12515A01D59).
- Which models use the hardware listed in this Engine wiring harness motor module 2?
- The hardware and components featured in the Engine wiring harness motor module 2 are specific to the 4 Series G22 Coupé 430i produced during 2024. These technical specifications ensure that parts like the Engine wiring harness motor module 2 (12515A01D59) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine wiring harness motor module 2 assembly?
- Each item in the Engine wiring harness motor module 2 corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 430i, you can identify the Engine wiring harness motor module 2 by locating its position on the schematic, which then links to the official BMW part number 12515A01D59 for the Engine electrical system section.
