Flow heater electr. for BMW 2 Series F22 LCI 218d (2020)

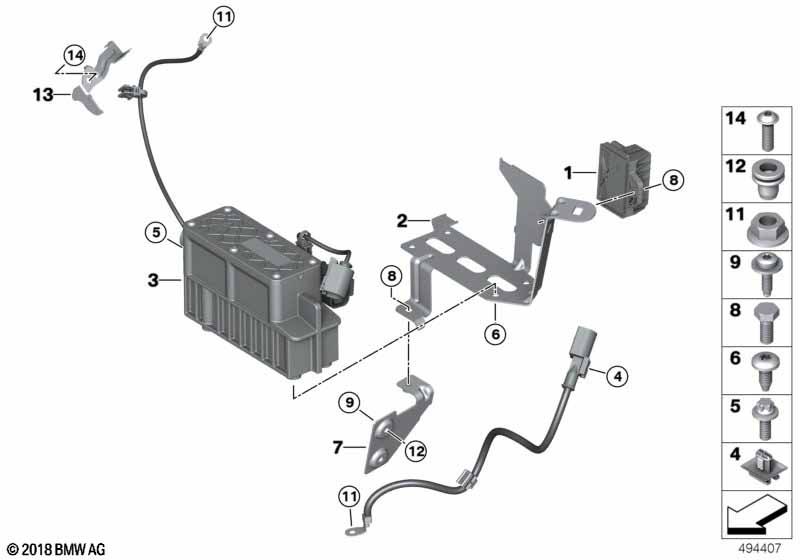

This Flow heater electr. technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit electric auxiliary heater | 1 | 12218596873 | Shop at ECS Tuning | ||||||
| 02 | Bracket for electric circulation heater | 1 | 12218597076 | Shop at ECS Tuning | ||||||
| 03 | Electric auxiliary heater | 800W | 1 | 12218596855 | Shop at ECS Tuning | |||||
| 04 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| 05 | Star-socket screw | M6X16-8.8-ZNS3 | 1 | 07119907242 | Shop at ECS Tuning | |||||
| 06 | Screw self-tapping | M6X14,5 ZNS3 | 4 | 07146967731 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Bracket, aux. radiator, upper left | 1 | 12218597829 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X14-ZNNIV SI | 2 | 07119905964 | Shop at ECS Tuning | |||||
| 09 | Countersunk screw | M6X20-PCU2-10.9 | 1 | 07119908698 | Shop at ECS Tuning | |||||
| 10 | Ground cable electric auxiliary heater | ELH | 1 | 12218475184 | Shop at ECS Tuning | |||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Blind rivet nut, flat headed | M6 | 2 | 41128223082 | $1.75 | Shop at ECS Tuning | ||||
| 13 | Holder | ELH | 1 | 12218490220 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | 1 | 07146982677 | $0.47 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F22 LCI 218d Flow heater electr.?
- This technical diagram illustrates the Flow heater electr. within the Engine electrical system group for the 2 Series F22 LCI 218d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Control unit electric auxiliary heater (Part #12218596873).
- Which models use the hardware listed in this Flow heater electr.?
- The hardware and components featured in the Flow heater electr. are specific to the 2 Series F22 LCI 218d produced during 2020. These technical specifications ensure that parts like the Control unit electric auxiliary heater (12218596873) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flow heater electr. assembly?
- Each item in the Flow heater electr. corresponds to the numbered list below the illustration. For the 2 Series F22 LCI 218d, you can identify the Control unit electric auxiliary heater by locating its position on the schematic, which then links to the official BMW part number 12218596873 for the Engine electrical system section.
