Ground cable for BMW 2 Series F46 Gran Tourer LCI 218d (2022)

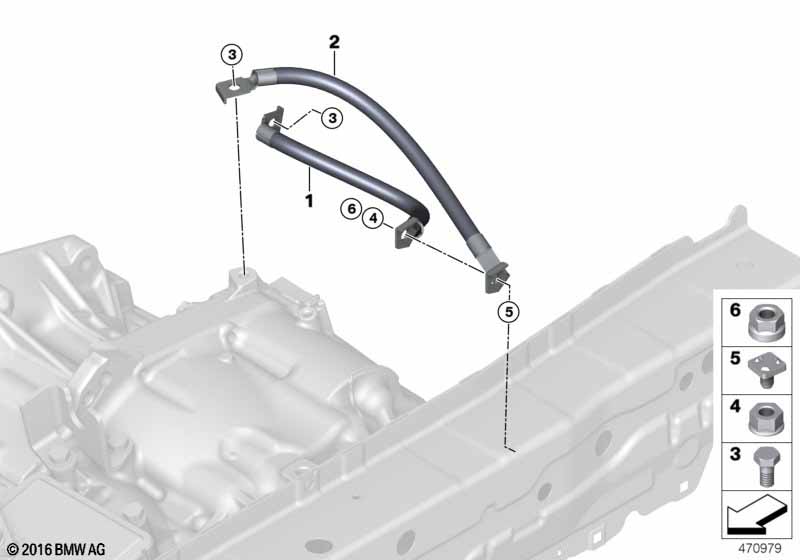

This Ground cable technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Steptronic with twin-clutch gearbox |
S2TFA=No |
|||||||||
| 01 | Ground cable | 1 | 12428602991 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Earth pin | M8 | 1 | 07146952709 | Shop at ECS Tuning | |||||
| 06 | Flange nut | M8 | 1 | 07146952901 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer LCI 218d Ground cable?
- This technical diagram illustrates the Ground cable within the Engine electrical system group for the 2 Series F46 Gran Tourer LCI 218d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Ground cable (Part #12428602991).
- Which models use the hardware listed in this Ground cable?
- The hardware and components featured in the Ground cable are specific to the 2 Series F46 Gran Tourer LCI 218d produced during 2022. These technical specifications ensure that parts like the Ground cable (12428602991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ground cable assembly?
- Each item in the Ground cable corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer LCI 218d, you can identify the Ground cable by locating its position on the schematic, which then links to the official BMW part number 12428602991 for the Engine electrical system section.
