Engine wiring harness for BMW 3 Series G20 Sedan LCI 330eX (2024)

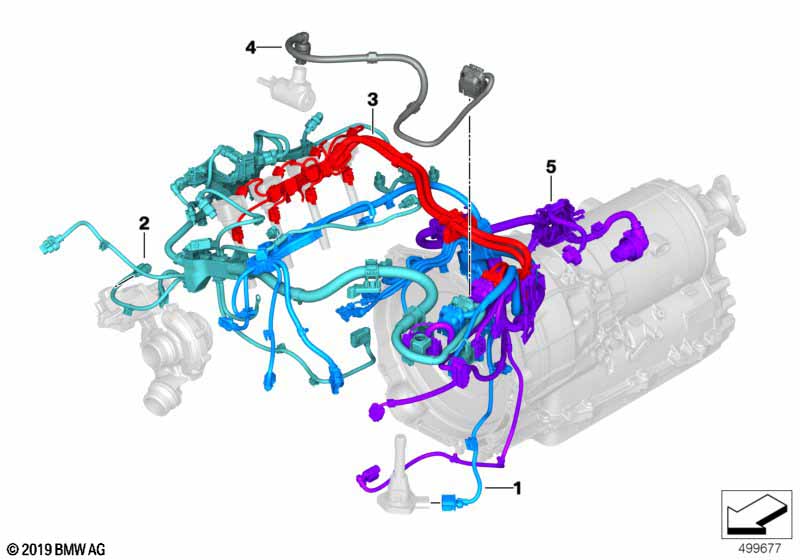

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, eng. Sensoric module 1 | PHEV | 1 | 12519896291 | Shop at ECS Tuning | |||||
| 01 | Wiring harness, eng. Sensoric module 1 | 1 | 12515A57791 | NoS | Shop at ECS Tuning | |||||
| 02 | Wiring harness, eng. Sensoric module 2 | PHEV | 1 | 12515A01D70 | Shop at ECS Tuning | |||||
| 02 | Wiring harness, eng. Sensoric module 2 | 1 | 12515A55883 | NoS | Shop at ECS Tuning | |||||
| 03 | wiring harness, engine ignition module | 1 | 12518482361 | Shop at ECS Tuning | ||||||
| 04 | Wiring loom, eng., Valvetronic servomtr | 1 | 12518482365 | Shop at ECS Tuning | ||||||
| 05 | Engine wiring harness transm.module | AWD PHEV | 1 | 12535A32751 | Shop at ECS Tuning | |||||
| 05 | wiring harness, engine trans. module | 1 | 12535A44215 | NoS | Shop at ECS Tuning |
