Battery cable for BMW 3 Series G21 Touring LCI M340dX (2024)

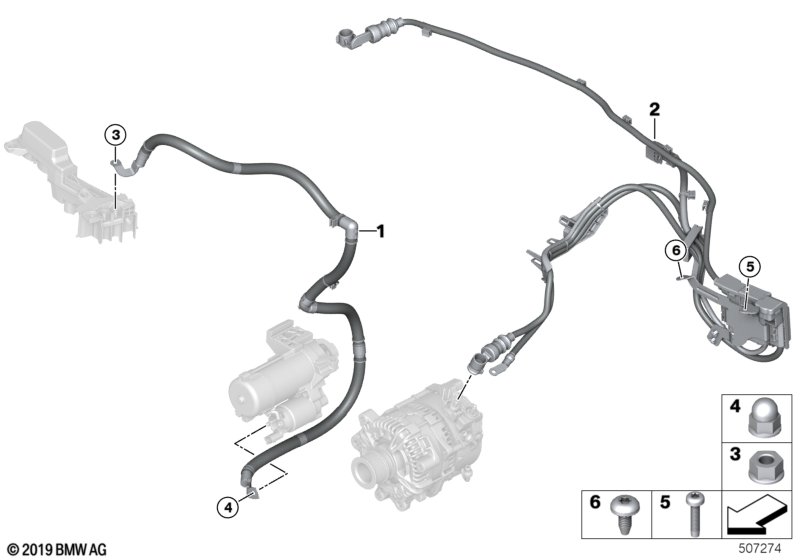

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, start motor supp point B+ | 1 | 12427822015 | Shop at ECS Tuning | ||||||
| 03 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Cap nut | M8 | 1 | 12528583524 | Shop at ECS Tuning | |||||
| 05 | Screw | V-M8GFX35 | 1 | 07129908701 | Shop at ECS Tuning | |||||
| 06 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI M340dX Battery cable?
- This technical diagram illustrates the Battery cable within the Engine electrical system group for the 3 Series G21 Touring LCI M340dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Cable, start motor supp point B+ (Part #12427822015).
- Which models use the hardware listed in this Battery cable?
- The hardware and components featured in the Battery cable are specific to the 3 Series G21 Touring LCI M340dX produced during 2024. These technical specifications ensure that parts like the Cable, start motor supp point B+ (12427822015) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable assembly?
- Each item in the Battery cable corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI M340dX, you can identify the Cable, start motor supp point B+ by locating its position on the schematic, which then links to the official BMW part number 12427822015 for the Engine electrical system section.
