Alternator for BMW 3 Series G20 Sedan M340iX (2022)

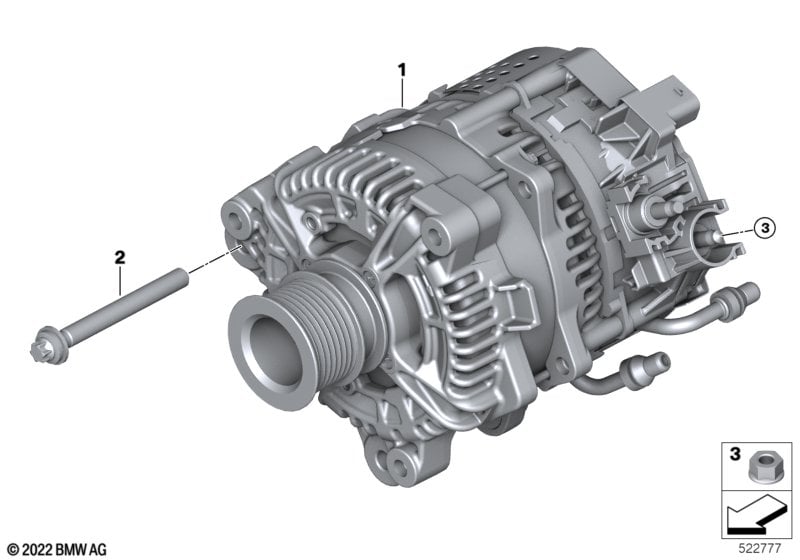

This Alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please determine the installed alternator independently or via diagnosis. |
|||||||||
| For vehicles with Energy recovery system |
S1CEA=Yes |
|||||||||
| 01 | Starter generator | 48V | 1 | 12318490540 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of bushes | 48V | 1 | 11515A14A58 | Shop at ECS Tuning | |||||
| 02 | Star-socket screw | BM10X125 | 2 | 12319908092 | Shop at ECS Tuning | |||||
| 03 | Flange nut | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan M340iX Alternator?
- This technical diagram illustrates the Alternator within the Engine electrical system group for the 3 Series G20 Sedan M340iX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Starter generator (Part #12318490540).
- Which models use the hardware listed in this Alternator?
- The hardware and components featured in the Alternator are specific to the 3 Series G20 Sedan M340iX produced during 2022. These technical specifications ensure that parts like the Starter generator (12318490540) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alternator assembly?
- Each item in the Alternator corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan M340iX, you can identify the Starter generator by locating its position on the schematic, which then links to the official BMW part number 12318490540 for the Engine electrical system section.
