Alternator for BMW 3 Series G28 Sedan 320Ld (2021)

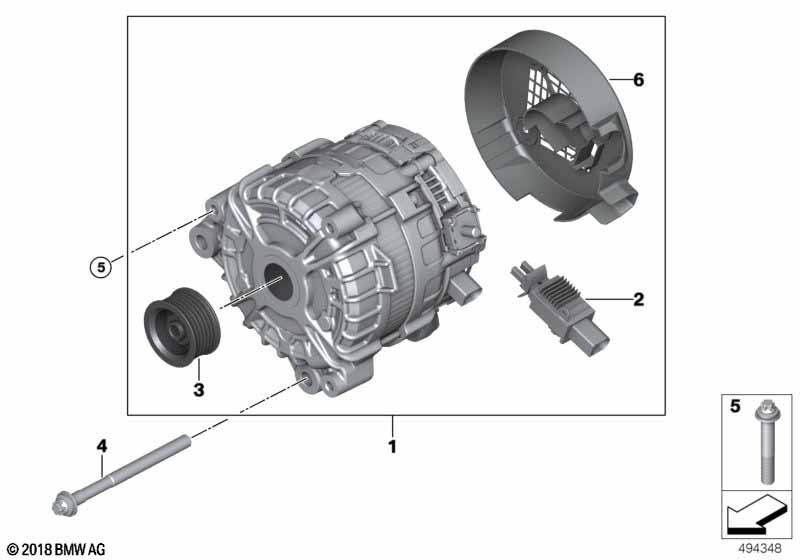

This Alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan 320Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please determine the installed alternator independently or via diagnosis. |
|||||||||
| 01 | RP alternator | 180A | 1 | 12318634166 | ENDED | Shop at ECS Tuning | ||||
| 01 | Alternator | 180A | 1 | 12318689831 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP alternator | 250A | 1 | 12318634167 | Shop at ECS Tuning | |||||
| 01 | Alternator | 250A | 1 | 12318689832 | ENDED | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | 180A | 1 | 12318635480 | Shop at ECS Tuning | |||||
| 02 | Voltage regulator | 250A | 1 | 12318635481 | Shop at ECS Tuning | |||||
| 02 | Carbon brush set | 1 | 12315A284D3 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | RP alternator | 180A | X | 12318634166 | ENDED | Shop at ECS Tuning | ||||
| -- | RP alternator | 250A | X | 12318634167 | Shop at ECS Tuning | |||||
| -- | Alternator | 150A | X | 12318654280 | Shop at ECS Tuning | |||||
| 03 | Pulley alternator | 1 | 12318643326 | Shop at ECS Tuning | ||||||
| 04 | Star-socket screw | BM10X125 | 1 | 12319908092 | Shop at ECS Tuning | |||||
| 05 | Star-socket screw | BM10X75 | 1 | 07129908286 | Shop at ECS Tuning | |||||
| 06 | Cover cap, alternator | 1 | 12318635482 | Shop at ECS Tuning | ||||||
| 06 | Cover cap, alternator | 150A | 1 | 12315A284C3 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | RP alternator | 180A | X | 12318634166 | ENDED | Shop at ECS Tuning | ||||
| -- | RP alternator | 250A | X | 12318634167 | Shop at ECS Tuning | |||||
| -- | Alternator | 150A | X | 12318654280 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
