Mounting parts for BMW iX3 G08 BEV iX3 (2021)

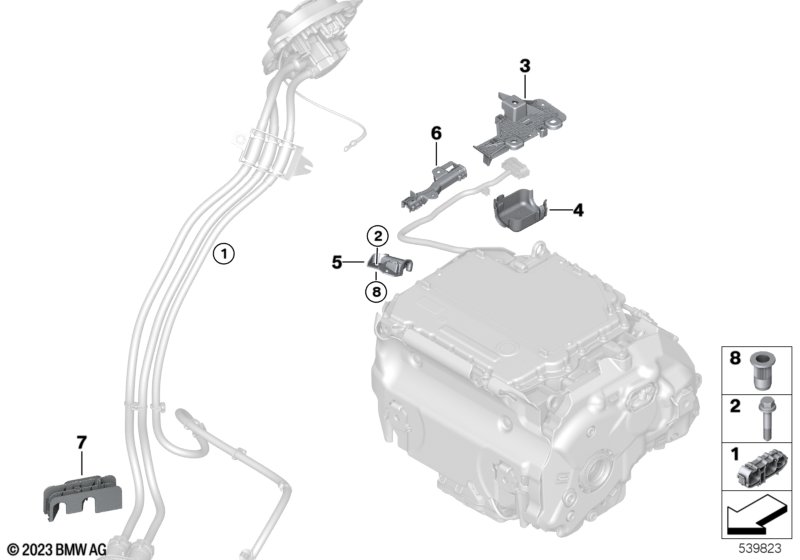

This Mounting parts technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clip | 1 | 12909798793 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | TS5X20 SW8 D=16 | 3 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 12529886419 | Shop at ECS Tuning | ||||||
| 04 | Holder | 1 | 12529886420 | Shop at ECS Tuning | ||||||
| 05 | Cable guide | 1 | 12525A4A080 | Shop at ECS Tuning | ||||||
| 06 | Cable guide | 1 | 12525A4A081 | Shop at ECS Tuning | ||||||
| 07 | Anti-scuffing | 1 | 12909796485 | Shop at ECS Tuning | ||||||
| 07 | Anti-scuffing | 1 | 12905A0A351 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW iX3 G08 BEV iX3 Mounting parts?
- This technical diagram illustrates the Mounting parts within the Engine electrical system group for the iX3 G08 BEV iX3 produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Clip (Part #12909798793).
- Which models use the hardware listed in this Mounting parts?
- The hardware and components featured in the Mounting parts are specific to the iX3 G08 BEV iX3 produced during 2021. These technical specifications ensure that parts like the Clip (12909798793) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts assembly?
- Each item in the Mounting parts corresponds to the numbered list below the illustration. For the iX3 G08 BEV iX3, you can identify the Clip by locating its position on the schematic, which then links to the official BMW part number 12909798793 for the Engine electrical system section.
