Engine wiring harness for BMW 1 Series F70 118d (2025)

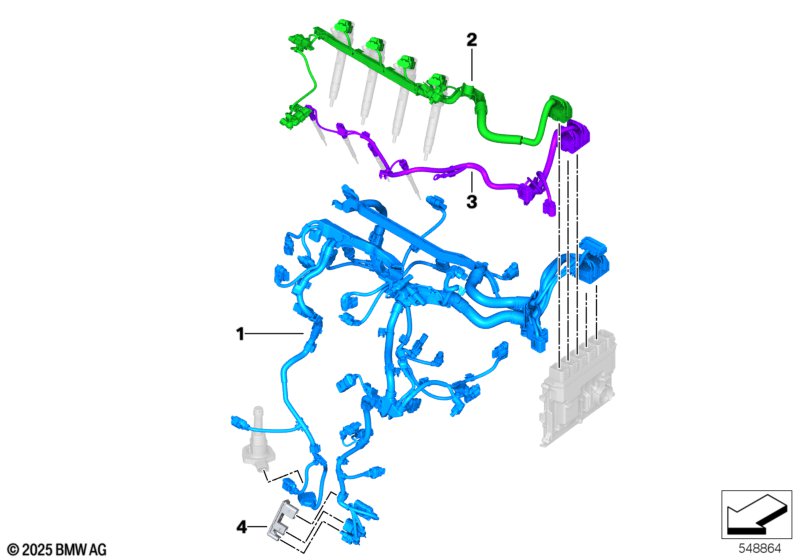

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Achtung! Verbauten Kabelbaum vorab im Fahrzeug gegenprüfen. |
|||||||||
| Bosch | ||||||||||
| 01 | Engine wiring harness engine module | EU7 | 1 | 12518477621 | NoS | Shop at ECS Tuning | ||||
| 02 | Cable harness injection valve/ignition | 1 | 12518477626 | Shop at ECS Tuning | ||||||
| 03 | Wiring harness, engine glow plug module | 1 | 12518477628 | Shop at ECS Tuning | ||||||
| 04 | Ground junction | 1 | 12518476573 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 118d Engine wiring harness?
- This technical diagram illustrates the Engine wiring harness within the Engine electrical system group for the 1 Series F70 118d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Engine wiring harness engine module (Part #12518477621).
- Which models use the hardware listed in this Engine wiring harness?
- The hardware and components featured in the Engine wiring harness are specific to the 1 Series F70 118d produced during 2025. These technical specifications ensure that parts like the Engine wiring harness engine module (12518477621) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine wiring harness assembly?
- Each item in the Engine wiring harness corresponds to the numbered list below the illustration. For the 1 Series F70 118d, you can identify the Engine wiring harness engine module by locating its position on the schematic, which then links to the official BMW part number 12518477621 for the Engine electrical system section.
