Control unit box for BMW 2 Series U06 Active Tourer 218d (2025)

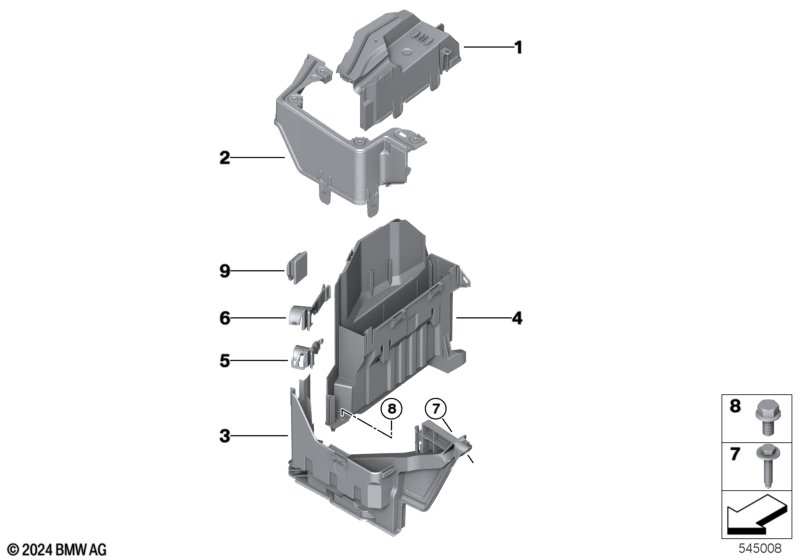

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover DME | 1 | 12907952982 | Shop at ECS Tuning | ||||||
| 02 | Cover PDM | 1 | 12907952985 | Shop at ECS Tuning | ||||||
| 03 | Tension strut | 1 | 12909894708 | Shop at ECS Tuning | ||||||
| 04 | Holder, DME | 1 | 12905A22699 | Shop at ECS Tuning | ||||||
| 05 | Cover | ZSK/VVT | 1 | 12905A23A80 | Shop at ECS Tuning | |||||
| 06 | Cover | SENS | 1 | 12905A23A79 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X40-PC-U2-10 | 1 | 51719908456 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X16-8.8-ZNS3 | 1 | 07119904124 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 218d Control unit box?
- This technical diagram illustrates the Control unit box within the Engine electrical system group for the 2 Series U06 Active Tourer 218d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cover DME (Part #12907952982).
- Which models use the hardware listed in this Control unit box?
- The hardware and components featured in the Control unit box are specific to the 2 Series U06 Active Tourer 218d produced during 2025. These technical specifications ensure that parts like the Cover DME (12907952982) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit box assembly?
- Each item in the Control unit box corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 218d, you can identify the Cover DME by locating its position on the schematic, which then links to the official BMW part number 12907952982 for the Engine electrical system section.
