Battery cable/starter cable for BMW 5 Series G60 Sedan 550eX (2025)

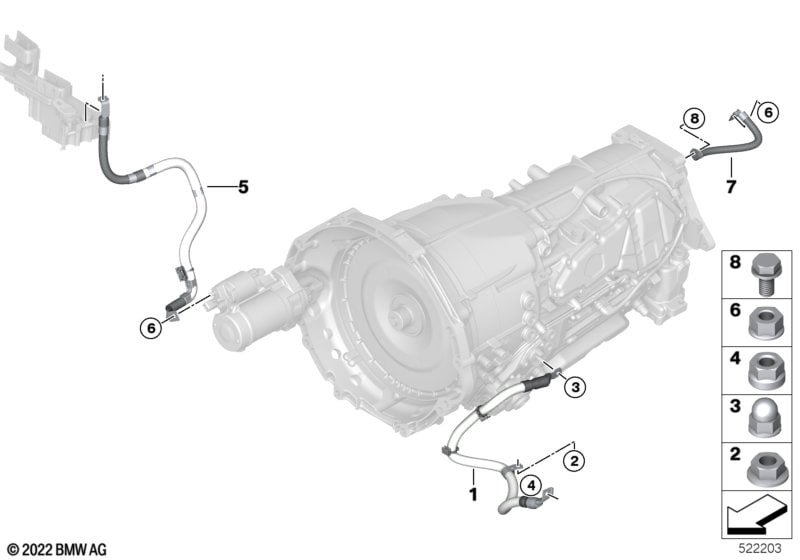

This Battery cable/starter cable technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Grounding cable | AWD-PHEV | 1 | 12425A121F3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Flange nut | M8 | 1 | 07146952901 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 550eX Battery cable/starter cable?
- This technical diagram illustrates the Battery cable/starter cable within the Engine electrical system group for the 5 Series G60 Sedan 550eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Flange nut (Part #07143413174).
- Which models use the hardware listed in this Battery cable/starter cable?
- The hardware and components featured in the Battery cable/starter cable are specific to the 5 Series G60 Sedan 550eX produced during 2025. These technical specifications ensure that parts like the Flange nut (07143413174) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable/starter cable assembly?
- Each item in the Battery cable/starter cable corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 550eX, you can identify the Flange nut by locating its position on the schematic, which then links to the official BMW part number 07143413174 for the Engine electrical system section.
