Battery cable for BMW 4 Series G23 Convertible LCI M440iX (2025)

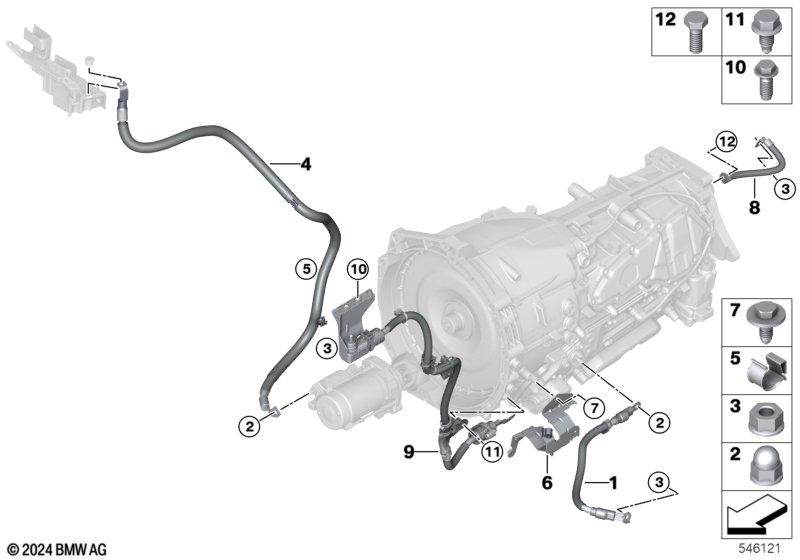

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gro cab, crankshaft starter generator | 1 | 12427618709 | NoS | Shop at ECS Tuning | |||||
| 02 | Cap nut | M8 | 1 | 12528583524 | Shop at ECS Tuning | |||||
| 03 | Flange nut | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Cable, starter | 1 | 03/2024 | 12425B33221 | NoS | Shop at ECS Tuning | ||||
| 05 | Cable holder | 1 | 07147590403 | Shop at ECS Tuning | ||||||
| 06 | Holder | 1 | 12425B39408 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU6 rde II and COC ADDITIONAL SCOPES |
S1DFA=Yes S8R3A=Yes |
|||||||||
| 07 | Combination Allen bolt | M6X16 | 2 | 61219855662 | Shop at ECS Tuning | |||||
| 09 | Wire KSG | 1 | 12425A3E802 | NoS | Shop at ECS Tuning | |||||
| 10 | Plastic bolt | 6X16 | 2 | 07129907895 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M8X14-8.8-ZNS3 | 1 | 07119906977 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
