Cable Harness Fixings for BMW 7 Series G70 740d (2023)

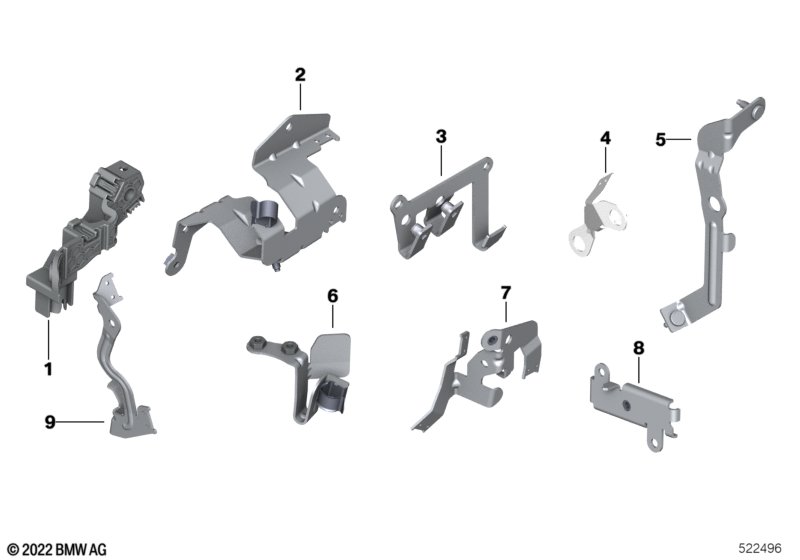

This Cable Harness Fixings technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support | 1 | 12528717960 | Shop at ECS Tuning | ||||||
| 02 | Holder | 1 | 12425A134B2 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Combination Allen bolt | M6X16 | 2 | 61219855662 | Shop at ECS Tuning | |||||
| 03 | Holder KSG line | 1 | 12529887705 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 12529888382 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Holder | 1 | 12529888381 | Shop at ECS Tuning | ||||||
| 05 | Holder | 1 | 12529886770 | Shop at ECS Tuning | ||||||
| 06 | Holder | 1 | 12527822088 | Shop at ECS Tuning | ||||||
| 07 | Bracket | 1 | 12528476587 | Shop at ECS Tuning | ||||||
| 08 | Bracket | 1 | 12528476588 | Shop at ECS Tuning | ||||||
| 09 | Holder | 1 | 12527926048 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740d Cable Harness Fixings?
- This technical diagram illustrates the Cable Harness Fixings within the Engine electrical system group for the 7 Series G70 740d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Support (Part #12528717960).
- Which models use the hardware listed in this Cable Harness Fixings?
- The hardware and components featured in the Cable Harness Fixings are specific to the 7 Series G70 740d produced during 2023. These technical specifications ensure that parts like the Support (12528717960) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable Harness Fixings assembly?
- Each item in the Cable Harness Fixings corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the Support by locating its position on the schematic, which then links to the official BMW part number 12528717960 for the Engine electrical system section.
