Sensor system for engine for BMW 5 Series G60 Sedan 520i (2024)

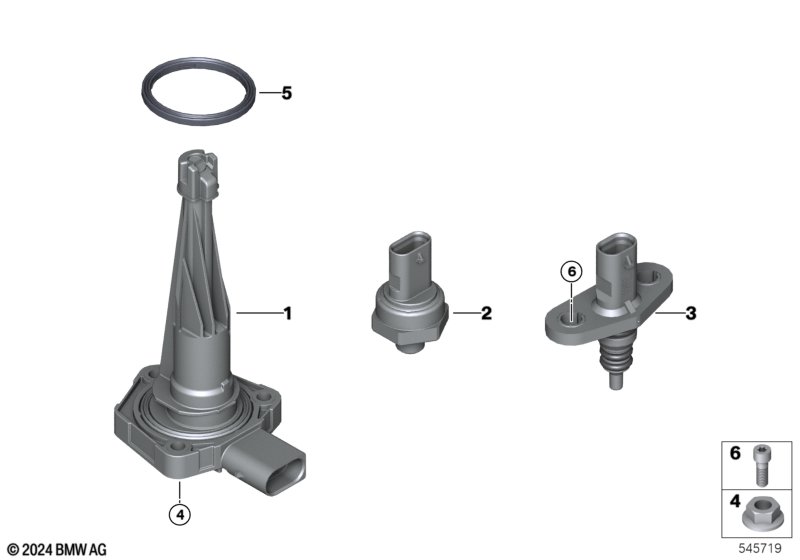

This Sensor system for engine technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil levelling sensor | 1 | 12615A14C01 | ENDED | Shop at ECS Tuning | |||||
| 01 | Oil levelling sensor | 1 | 12615A740A3 | Shop at ECS Tuning | ||||||
| 02 | Oil pressure sensor | 1 | 12618482216 | Shop at ECS Tuning | ||||||
| 03 | Oil temperature sensor | 1 | 12619452254 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 12619454471 | Shop at ECS Tuning | ||||||
| 06 | Fillister-head screw | M6X18-10.9-ZNS3 | 2 | 07119906651 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
