Battery cable for BMW 5 Series G60 Sedan 520d (2025)

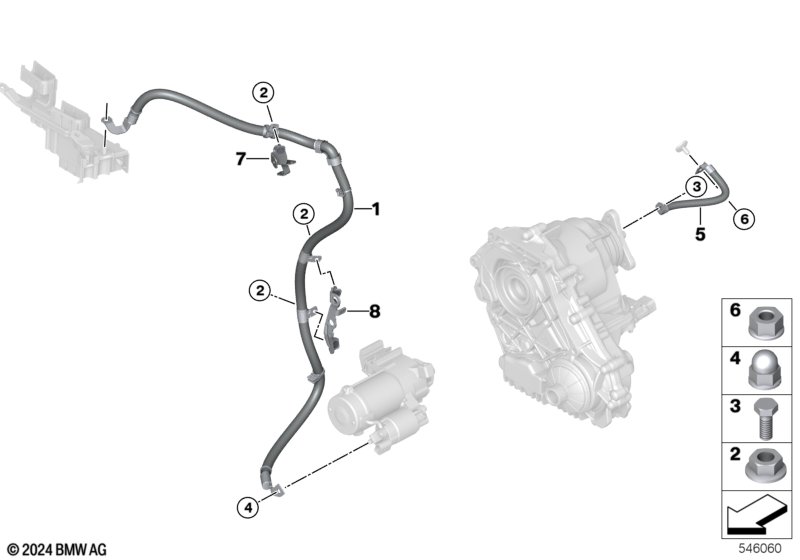

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Starter cable | 1 | 12429886194 | NoS | Shop at ECS Tuning | |||||
| 02 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 04 | Cap nut | M8 | 1 | 12528583524 | Shop at ECS Tuning | |||||
| 05 | Grounding cable | RWD | 1 | 12425A121F4 | Shop at ECS Tuning | |||||
| 06 | Flange nut | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520d Battery cable?
- This technical diagram illustrates the Battery cable within the Engine electrical system group for the 5 Series G60 Sedan 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Starter cable (Part #12429886194).
- Which models use the hardware listed in this Battery cable?
- The hardware and components featured in the Battery cable are specific to the 5 Series G60 Sedan 520d produced during 2025. These technical specifications ensure that parts like the Starter cable (12429886194) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable assembly?
- Each item in the Battery cable corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520d, you can identify the Starter cable by locating its position on the schematic, which then links to the official BMW part number 12429886194 for the Engine electrical system section.
