Engine wiring harness for BMW 5 Series G61 Touring 520d (2023)

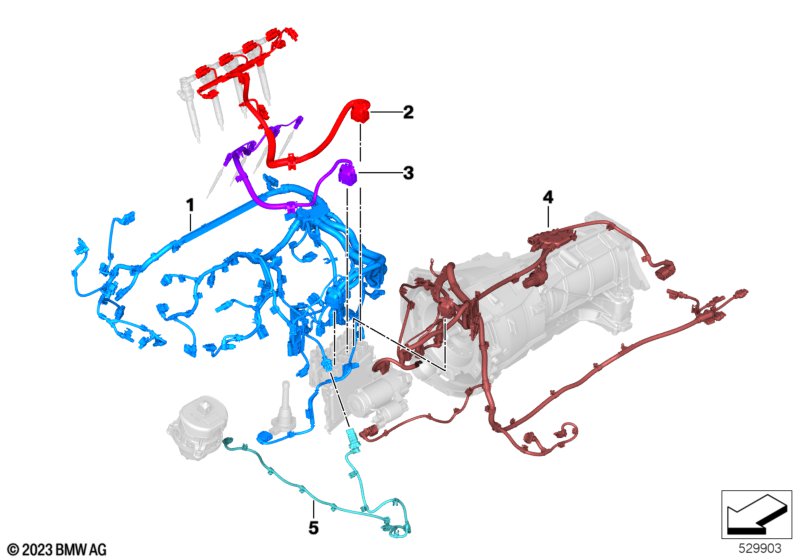

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine wiring harness engine module | RWD | 1 | 12515A8E047 | NoS | Shop at ECS Tuning | ||||
| 02 | Engine wiring harness injector module | 1 | 12517925723 | NoS | Shop at ECS Tuning | |||||
| 03 | Engine wiring harness preheating module | 1 | 12517925721 | NoS | Shop at ECS Tuning | |||||
| 04 | Eng. wiring harness power supply module | RWD | 1 | 12517925728 | NoS | Shop at ECS Tuning | ||||
| 05 | Adapter line | 1 | 12519885800 | NoS | Shop at ECS Tuning |
