ALTERNATOR PARTS 120A/150A Valeo for BMW 3 Series E46 320d (2005)

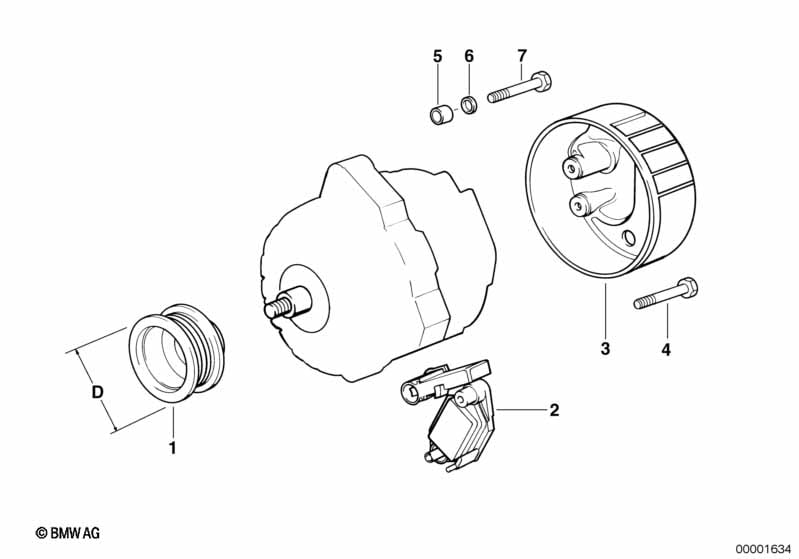

This ALTERNATOR PARTS 120A/150A Valeo technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulley | D=58,8MM | 1 | 09/2002 | 12317789982 | $41.23 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Compact alternator | 150A | X | 09/2002 | 12312248296 | $770.04 | ENDED | Shop at ECS Tuning | ||
| -- | Compact alternator | 150A | X | 09/2002 | 12317789980 | ENDED | Shop at ECS Tuning | |||
| -- | RP REMAN compact alternator | 150A | X | 09/2002 | 12317789983 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | MOTOROLA | 1 | 09/2002 | 06/2006 | 12317797662 | +core | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Compact alternator | 150A | X | 09/2002 | 06/2006 | 12312248296 | $770.04 | ENDED | Shop at ECS Tuning | |
| -- | Compact alternator | 150A | X | 09/2002 | 06/2006 | 12317789980 | ENDED | Shop at ECS Tuning | ||
| -- | RP REMAN compact alternator | 150A | X | 09/2002 | 06/2006 | 12317789983 | ENDED | Shop at ECS Tuning | ||
| 02 | Voltage regulator | MOTOROLA | 1 | 12317797662 | +core | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Compact alternator | 150A | X | 12312248296 | $770.04 | ENDED | Shop at ECS Tuning | |||
| -- | RP compact alternator | 150A | X | 12317797660 | Shop at ECS Tuning | |||||
| -- | RP REMAN compact alternator | 150A | X | 12317797661 | Shop at ECS Tuning | |||||
| 03 | Cover cap, alternator | 1 | 09/2002 | 12317788820 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M10X70 | 1 | 07119905818 | $1.78 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
