Igtn. coil/sparkplug connector/sparkplug for BMW 3 Series E46 325i (2002)
This Igtn. coil/sparkplug connector/sparkplug technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil | BOSCH | 6 | 09/2002 | 12131703228 | $85.84 | Shop at ECS Tuning | |||

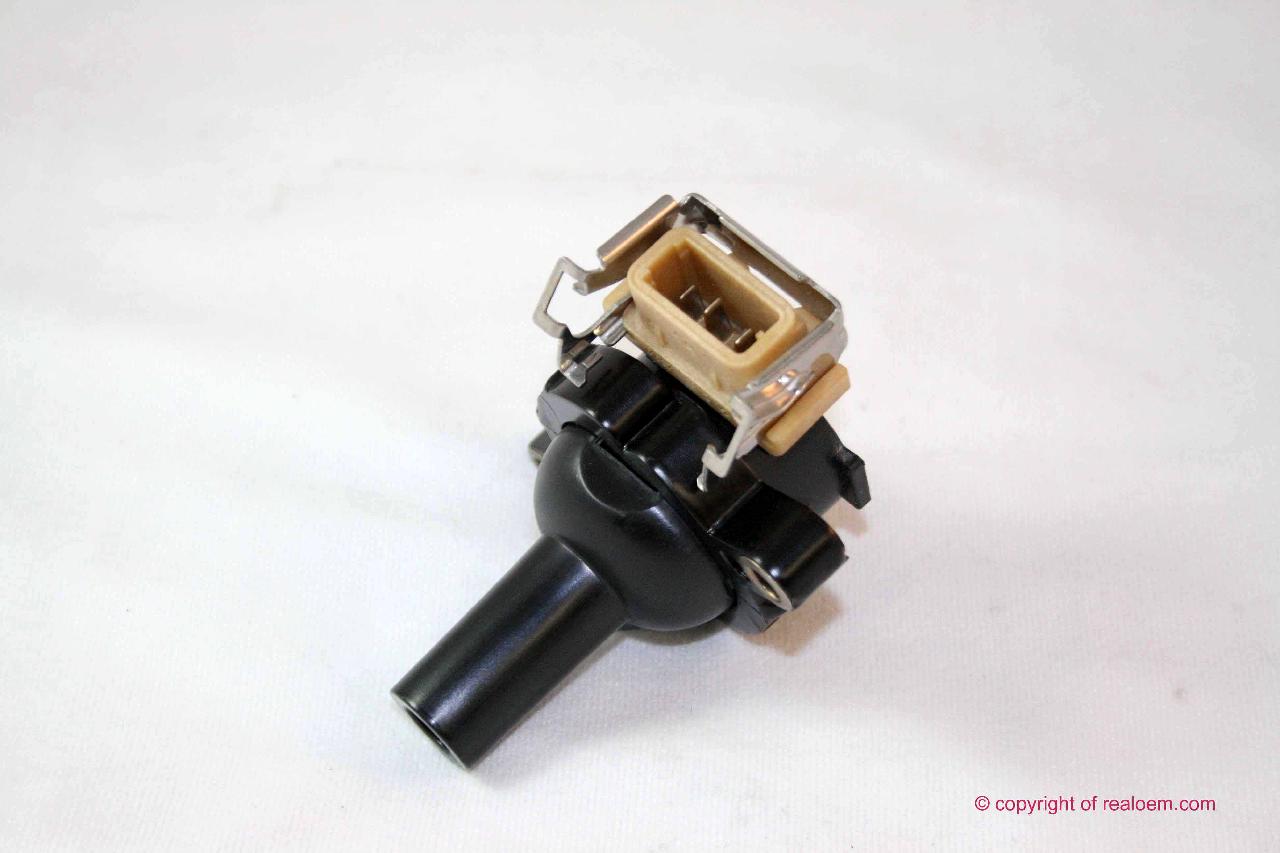

| 01 | Ignition coil | BREMI | 6 | 09/2002 | 12137599219 | Shop at ECS Tuning | ||||
| 02 | Spark plug socket | BREMI | 6 | 09/2002 | 12131730412 | Shop at ECS Tuning | ||||

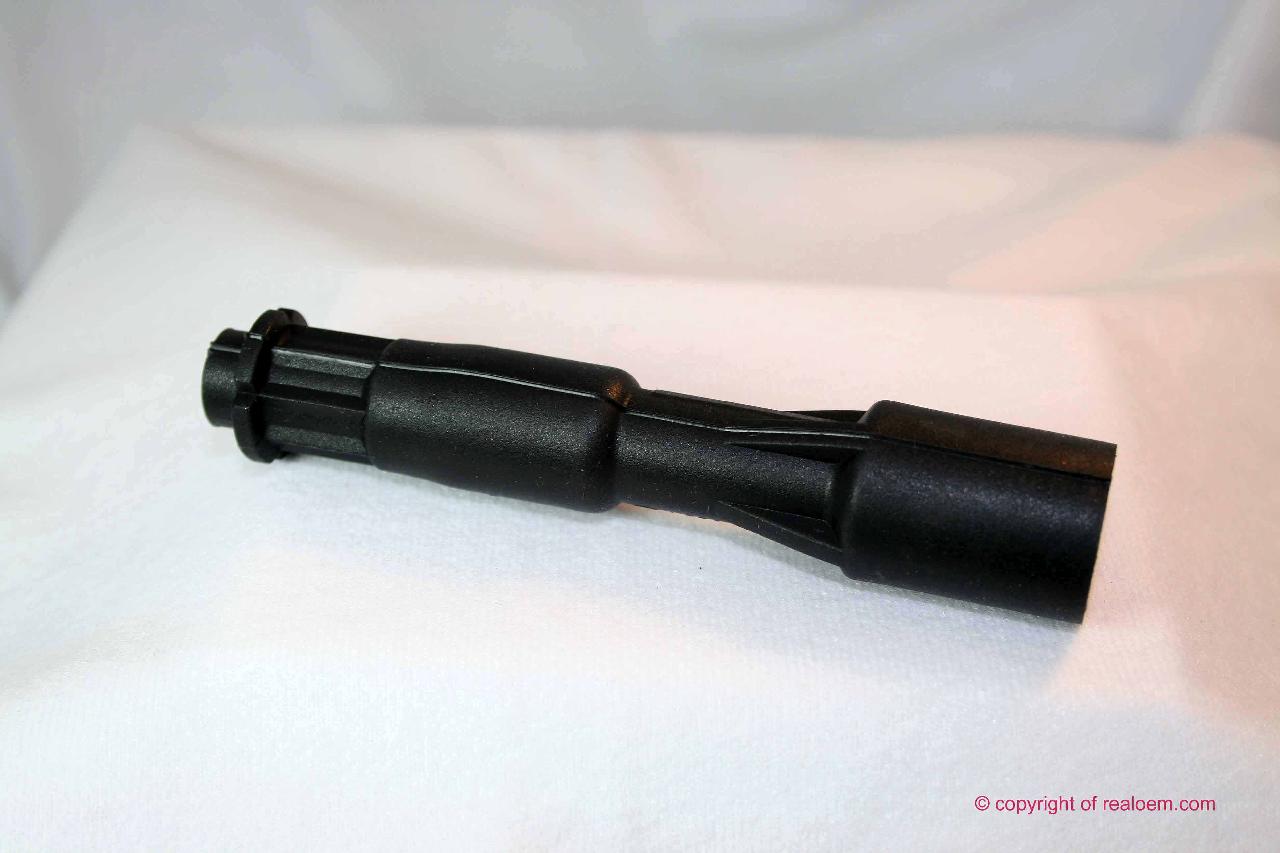

| 02 | Spark plug socket | BOSCH | 6 | 09/2002 | 12131740477 | $13.95 | ENDED | Shop at ECS Tuning | ||
| 03 | Hex bolt with washer | M6X25-ZNNIV SI | 12 | 09/2002 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 05 | Spark plug, High Power | 6 | 09/2002 | 12120037607 | Shop at ECS Tuning | |||||
| 05 | Spark plug, High Power | NGK BKR6EQUP | 6 | 09/2002 | 12129071003 | $21.32 | ENDED | Shop at ECS Tuning | ||
| 05 | Spark plug, High Power | 6 | 09/2002 | 12120037607 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Igtn. coil/sparkplug connector/sparkplug?
- This technical diagram illustrates the Igtn. coil/sparkplug connector/sparkplug within the Engine electrical system group for the 3 Series E46 325i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Ignition coil (Part #12131703228).
- Which models use the hardware listed in this Igtn. coil/sparkplug connector/sparkplug?
- The hardware and components featured in the Igtn. coil/sparkplug connector/sparkplug are specific to the 3 Series E46 325i produced during 2002. These technical specifications ensure that parts like the Ignition coil (12131703228) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Igtn. coil/sparkplug connector/sparkplug assembly?
- Each item in the Igtn. coil/sparkplug connector/sparkplug corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Ignition coil by locating its position on the schematic, which then links to the official BMW part number 12131703228 for the Engine electrical system section.
