Sensors for BMW 3 Series E46 325i (2002)

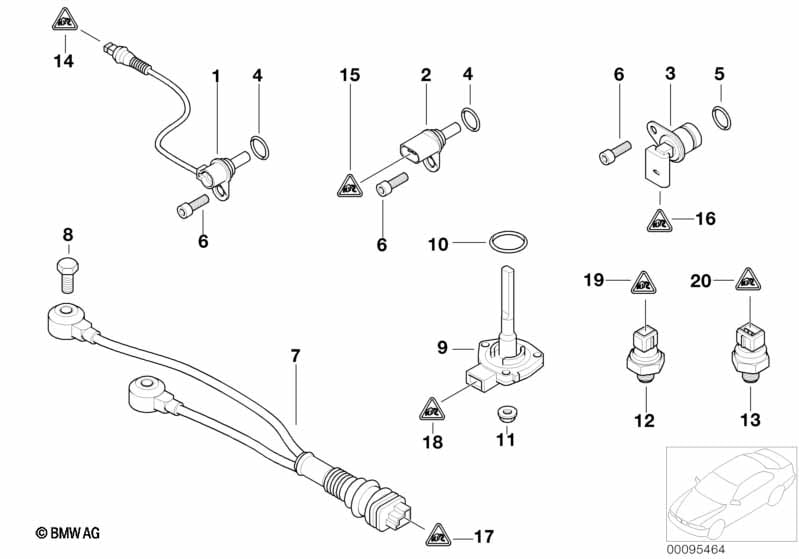

This Sensors technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft position sensor | 1 | 12147539165 | $116.05 | Shop at ECS Tuning | |||||
| 02 | Camshaft position sensor | 1 | 12147518628 | $116.05 | Shop at ECS Tuning | |||||
| 03 | Pulse generator, crankshaft | 1 | 12141709616 | $116.05 | Shop at ECS Tuning | |||||
| 04 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 05 | O-ring | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 07 | Ping Sensor | 1 | 13627568422 | $90.58 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X30-8.8-ZNS3 | 2 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 11 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
| 13 | Temperature switch | 35 CEL | 1 | 12521741900 | $31.13 | Shop at ECS Tuning | ||||
| 14 | Socket housing | 3 POL. | 3 | 12521427222 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||

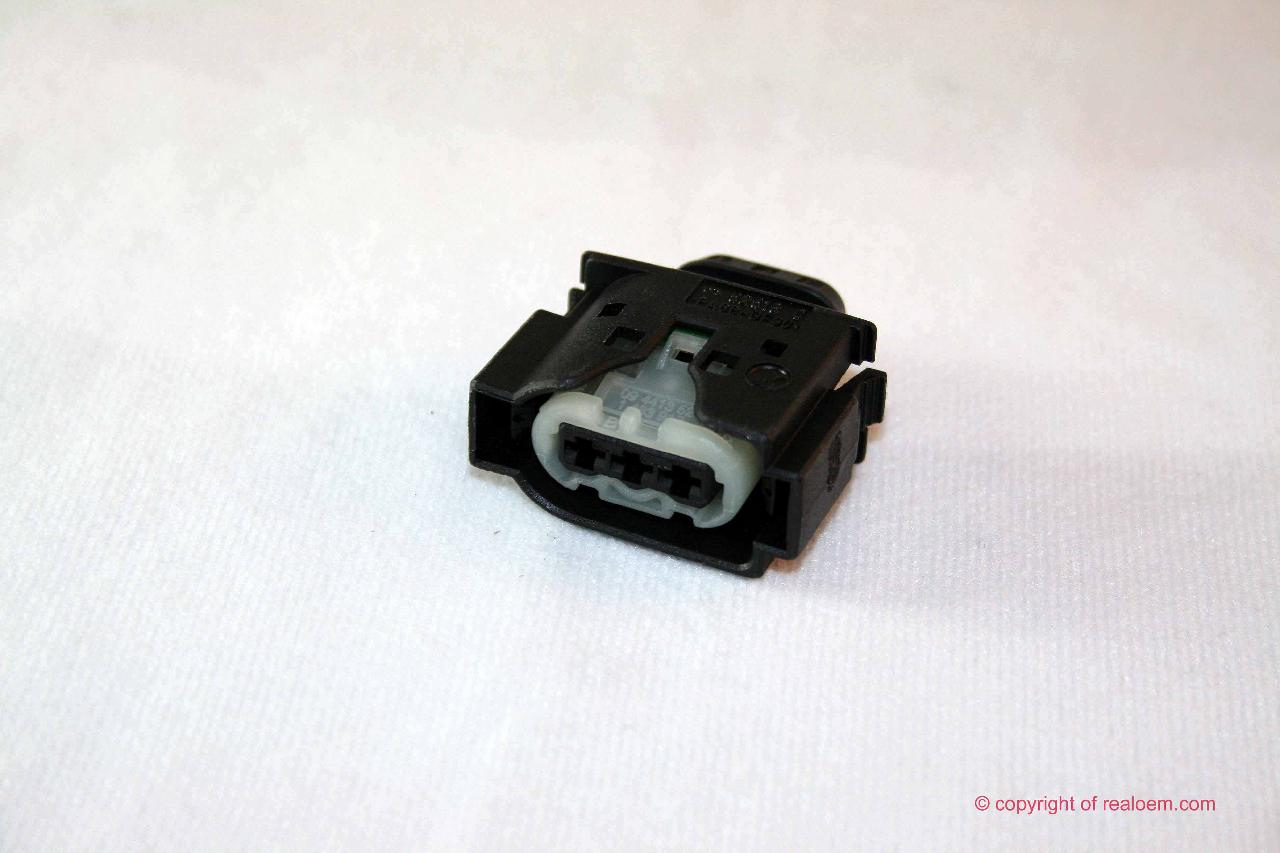

| 15 | Socket housing | 3 POL. | 3 | 12521433917 | $2.53 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| 16 | Socket housing | 3 POL. | 1 | 12521433916 | $2.53 | Shop at ECS Tuning | ||||
| 17 | Socket housing | 4 POL. | 1 | 12521427964 | $2.53 | Shop at ECS Tuning | ||||
| 18 | Socket housing | 3 POL. | 3 | 12521433915 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| -- | Protection cap | 3 POL. | 1 | 12521732634 | $3.17 | Shop at ECS Tuning | ||||
| 19 | Socket housing | 2 POL. | 2 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| 20 | Socket housing | 2 POL. | 2 | 12521427787 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
