Compact alternator for BMW 3 Series E46 325i (2002)

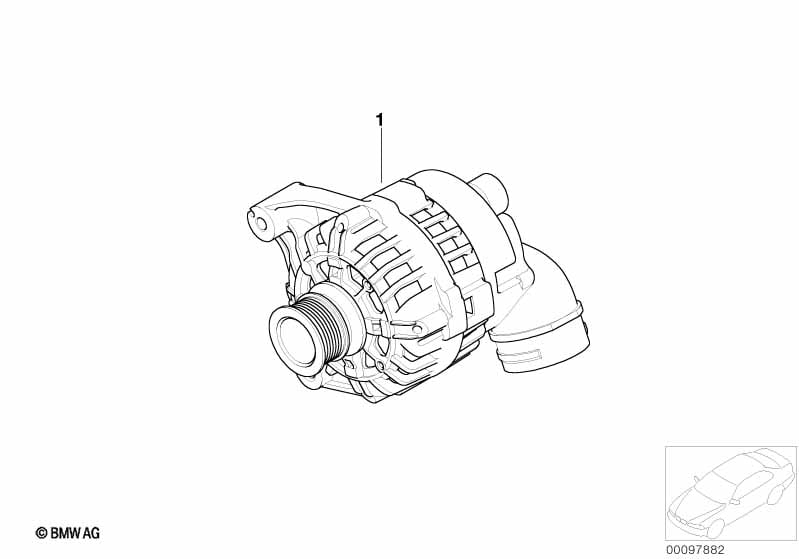

This Compact alternator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Please determine the installed alternator independently or via diagnosis. |
|||||||||
| 01 | Generator | 120A | 1 | 12317519620 | $561.43 | Shop at ECS Tuning | ||||

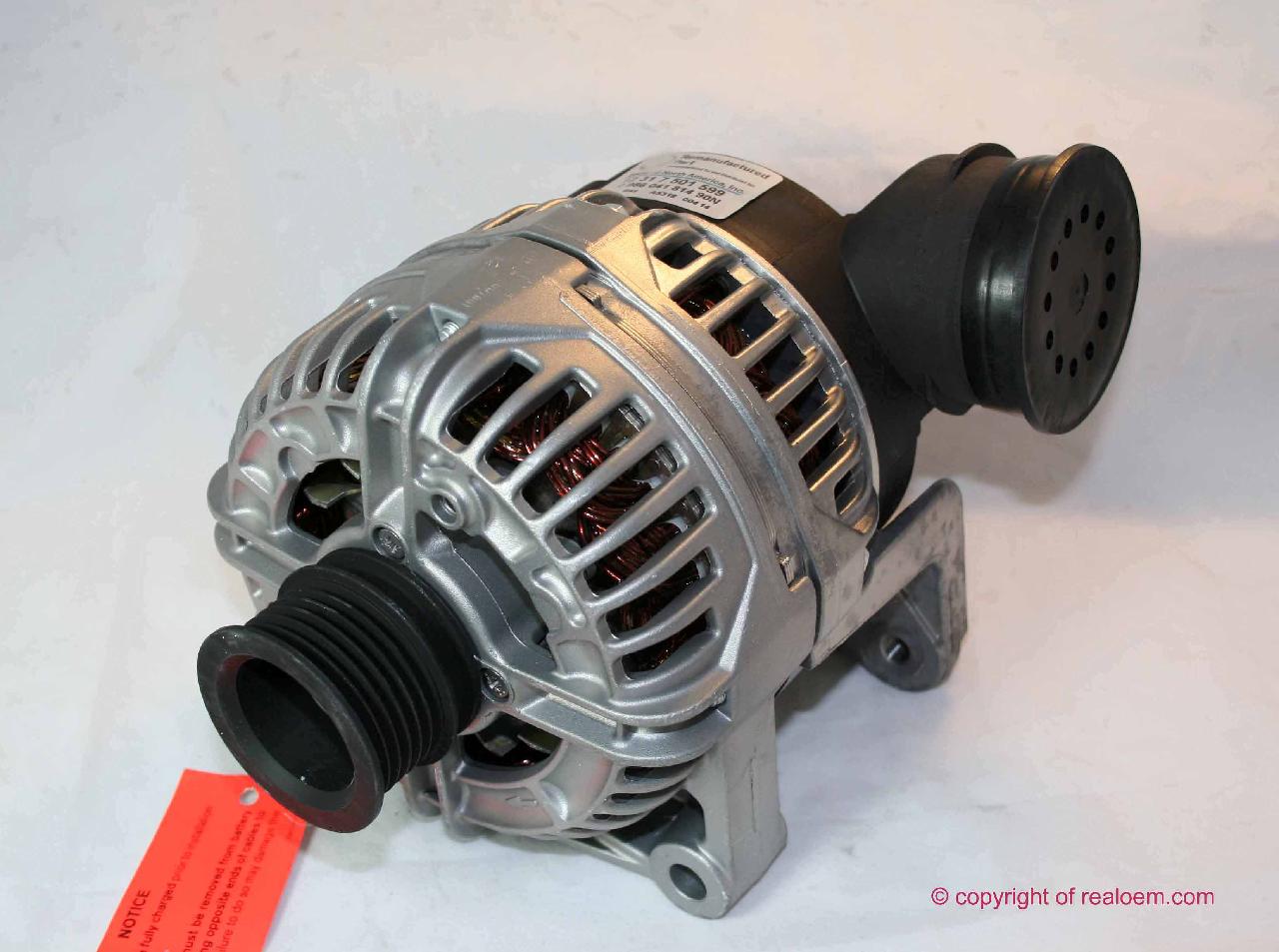

| 01 | RP REMAN compact alternator | 120A VALEO | 1 | 12317501599 | $561.43 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | RP REMAN compact alternator | 120A BOSCH | 1 | 12317501690 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cap nut | 1 | 12427565287 | $3.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Compact alternator?
- This technical diagram illustrates the Compact alternator within the Engine electrical system group for the 3 Series E46 325i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Generator (Part #12317519620).
- Which models use the hardware listed in this Compact alternator?
- The hardware and components featured in the Compact alternator are specific to the 3 Series E46 325i produced during 2002. These technical specifications ensure that parts like the Generator (12317519620) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Compact alternator assembly?
- Each item in the Compact alternator corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Generator by locating its position on the schematic, which then links to the official BMW part number 12317519620 for the Engine electrical system section.
