ALTERNATOR PARTS 90A Valeo for BMW 3 Series E46 325i (2002)

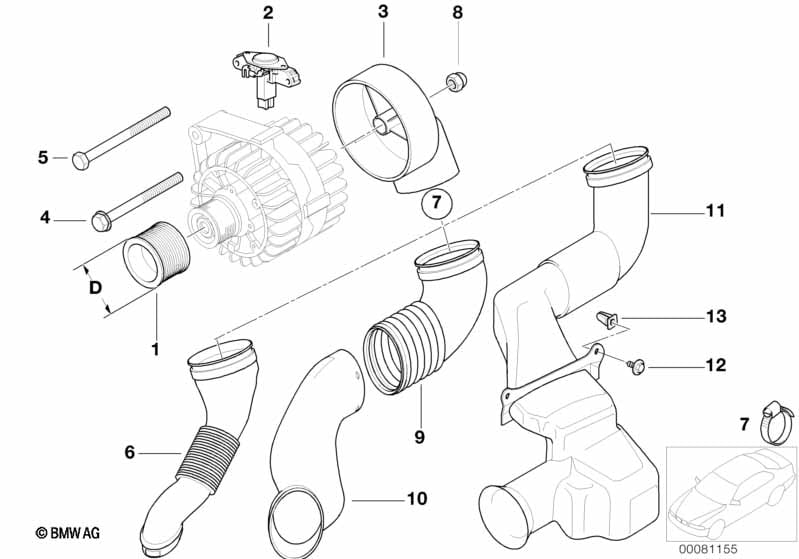

This ALTERNATOR PARTS 90A Valeo technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulley alternator | DB=55MM | 1 | 12311713945 | $32.10 | ENDED | Shop at ECS Tuning | |||
| 02 | Voltage regulator | VALEO | 1 | 12317792094 | Shop at ECS Tuning | |||||
| 03 | Cap | 1 | 12317501750 | $24.40 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M10X110-Z1 | 1 | 07119900476 | $1.20 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 08 | Cap nut | 1 | 12427565287 | $3.23 | Shop at ECS Tuning | |||||
| 09 | Air channel upper | 1 | 12311432465 | $7.82 | Shop at ECS Tuning | |||||
| 10 | Air channel lower | 1 | 12311706643 | $9.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
