Generator single parts 120A Bosch for BMW 3 Series E46 325i (2002)

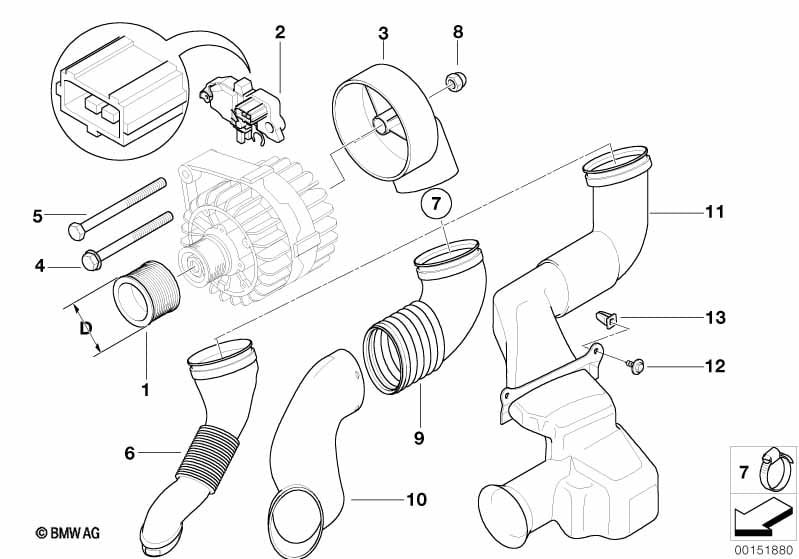

This Generator single parts 120A Bosch technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pulley alternator | D=55MM | 1 | 12317501754 | $32.10 | Shop at ECS Tuning | ||||
| 02 | Voltage regulator | 1 | 12317559183 | $124.68 | Shop at ECS Tuning | |||||
| 03 | Cap | 1 | 12317501755 | $24.40 | Shop at ECS Tuning | |||||

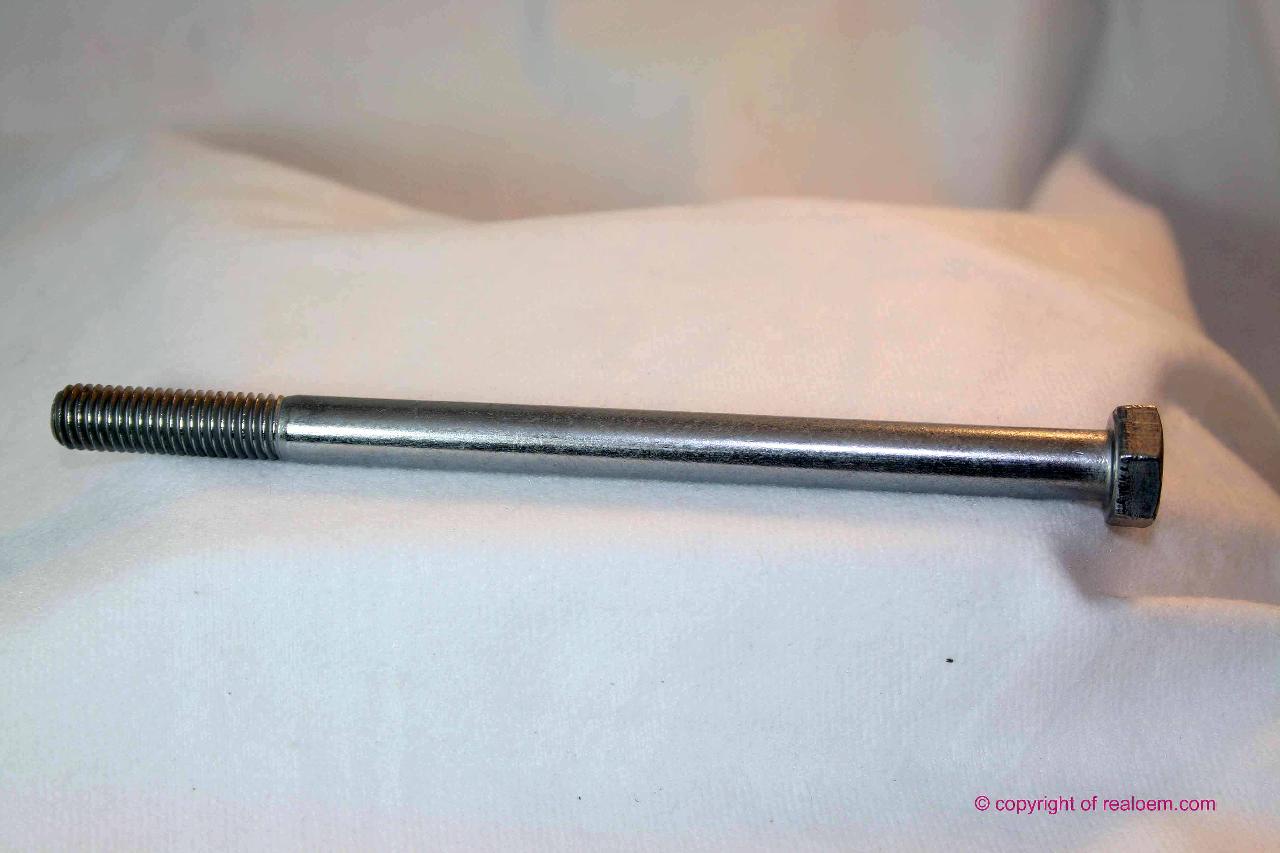

| 04 | Hex bolt | M10X150 | 1 | 07119904677 | $3.82 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M10X125 | 1 | 07119905523 | $2.84 | Shop at ECS Tuning | ||||
| 08 | Cap nut | 1 | 12427565287 | $3.23 | Shop at ECS Tuning | |||||
| 09 | Air channel upper | 1 | 12311432465 | $7.82 | Shop at ECS Tuning | |||||
| For vehicles with Aerodynamics package |
S716A=Yes |
|||||||||
| 09 | Air channel upper | 1 | 12311432465 | $7.82 | Shop at ECS Tuning | |||||
| 10 | Air channel lower | 1 | 12311706643 | $9.85 | Shop at ECS Tuning | |||||
| For vehicles with Aerodynamics package |
S716A=Yes |
|||||||||
| 10 | Air channel lower | 1 | 12317503969 | $12.50 | Shop at ECS Tuning | |||||
