Starter for BMW 3 Series E46 325i (2002)

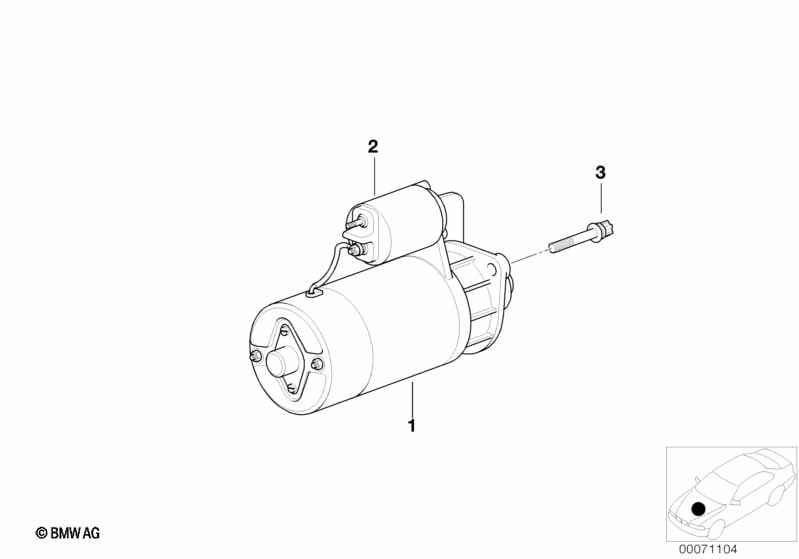

This Starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP REMAN starter motor | 1,4 KW | 1 | 09/2002 | 12412354709 | Shop at ECS Tuning | ||||
| 02 | Solenoid switch | BOSCH | 1 | 12417515393 | $83.43 | +core | Shop at ECS Tuning | |||
| 03 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M10X65-8.8-ZNS3 | 2 | 07129904681 | $1.64 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Starter?
- This technical diagram illustrates the Starter within the Engine electrical system group for the 3 Series E46 325i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN starter motor (Part #12412354709).
- Which models use the hardware listed in this Starter?
- The hardware and components featured in the Starter are specific to the 3 Series E46 325i produced during 2002. These technical specifications ensure that parts like the RP REMAN starter motor (12412354709) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Starter assembly?
- Each item in the Starter corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the RP REMAN starter motor by locating its position on the schematic, which then links to the official BMW part number 12412354709 for the Engine electrical system section.
