wiring harness, engine trans. module for BMW 3 Series E46 325i (2002)

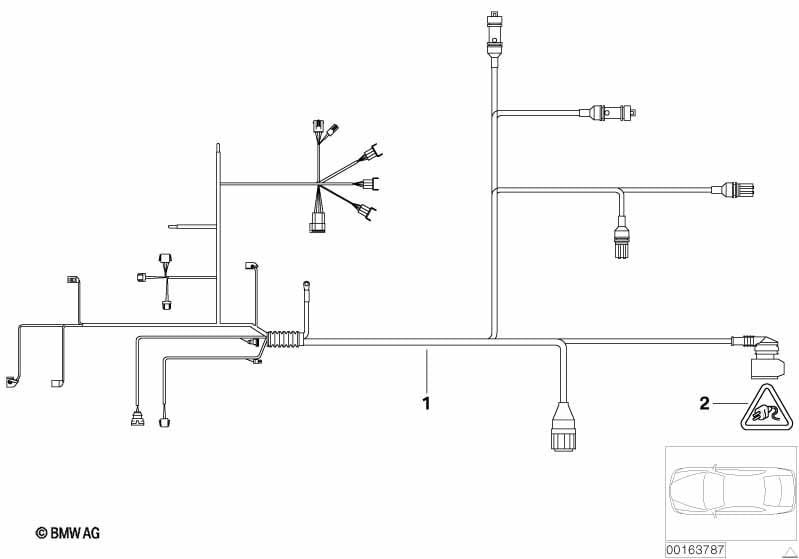

This wiring harness, engine trans. module technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | wiring harness, engine trans. module | 1 | 09/2002 | 12517506793 | $278.71 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Fuse | MODUL | X | 09/2002 | 12521740558 | $7.82 | Shop at ECS Tuning | |||
| For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
|||||||||
| 01 | wiring harness, engine trans. module | 1 | 09/2002 | 12517519632 | $383.90 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission and Sequential manual transmission (SMG) |
S205A=No S206A=No |
|||||||||
| 01 | wiring harness, engine trans. module | 1 | 09/2002 | 12517506794 | $168.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i wiring harness, engine trans. module?
- This technical diagram illustrates the wiring harness, engine trans. module within the Engine electrical system group for the 3 Series E46 325i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the wiring harness, engine trans. module (Part #12517506793).
- Which models use the hardware listed in this wiring harness, engine trans. module?
- The hardware and components featured in the wiring harness, engine trans. module are specific to the 3 Series E46 325i produced during 2002. These technical specifications ensure that parts like the wiring harness, engine trans. module (12517506793) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the wiring harness, engine trans. module assembly?
- Each item in the wiring harness, engine trans. module corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the wiring harness, engine trans. module by locating its position on the schematic, which then links to the official BMW part number 12517506793 for the Engine electrical system section.
