Ignition coil/spark plug for BMW 3 Series E46 320i (2005)
This Ignition coil/spark plug technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition coil | 6 | 09/2002 | 06/2009 | 12131712219 | $57.21 | ENDED | Shop at ECS Tuning | ||
| Delphi | ||||||||||
| 01 | Ignition coil | DELPHI | 6 | 09/2002 | 12138616153 | Shop at ECS Tuning | ||||
| 02 | Locking mechanism | 6 | 09/2002 | 12131437986 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Spark plug, High Power | 6 | 09/2002 | 12120037607 | Shop at ECS Tuning | |||||
| 03 | Spark plug, High Power | NGK BKR6EQUP | 6 | 09/2002 | 12129071003 | $21.32 | ENDED | Shop at ECS Tuning | ||
| 03 | Spark plug, High Power | 6 | 09/2002 | 12120037607 | Shop at ECS Tuning | |||||
| 04 | Socket housing | 1 | 09/2002 | 05/2006 | 12521437985 | $2.53 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 09/2002 | 05/2006 | 12520143427 | $2.03 | Shop at ECS Tuning | ||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,5- 1,0 MM²/AG | 1 | 09/2002 | 05/2006 | 12520143433 | $4.00 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Ignition coil/spark plug?

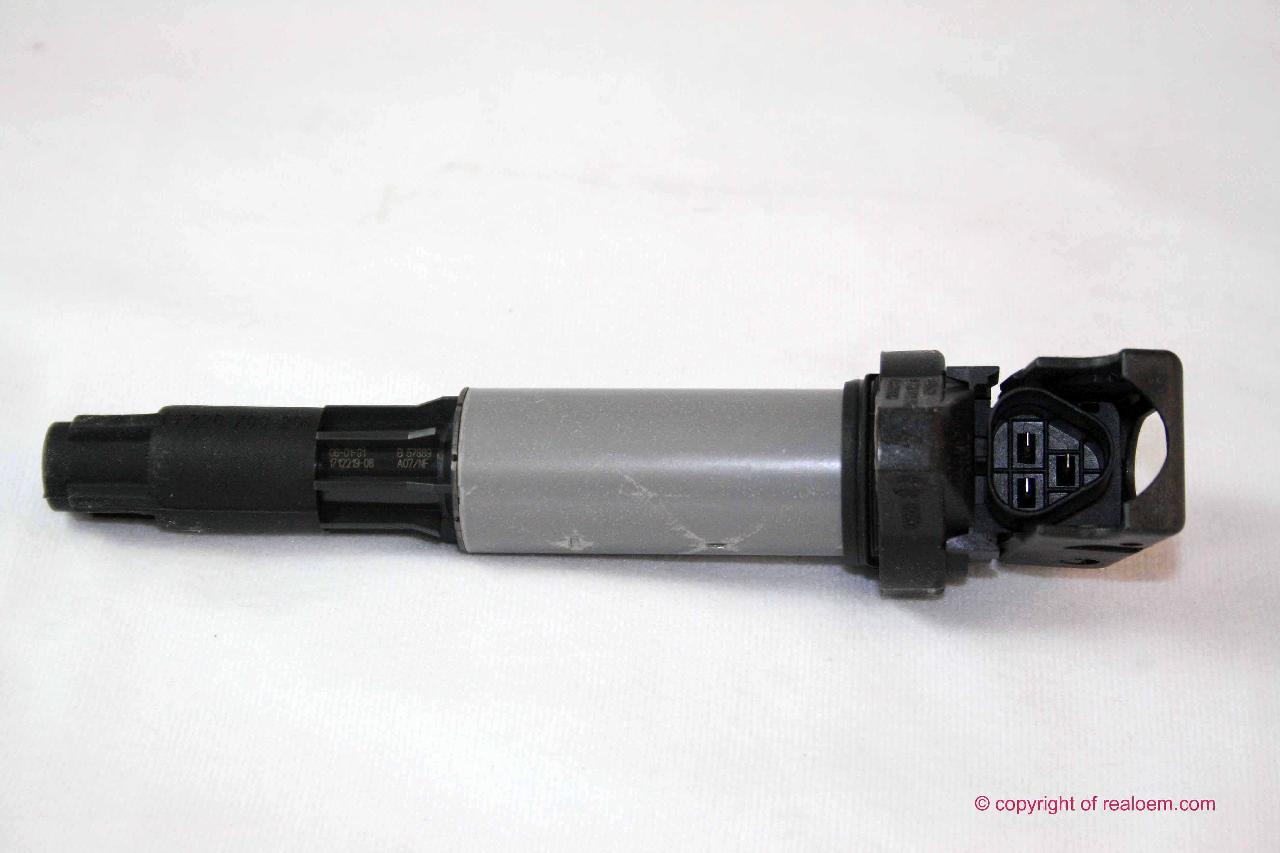

- This technical diagram illustrates the Ignition coil/spark plug within the Engine electrical system group for the 3 Series E46 320i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Ignition coil (Part #12131712219).
