Cable, starter for BMW 3 Series E46 325i (2002)

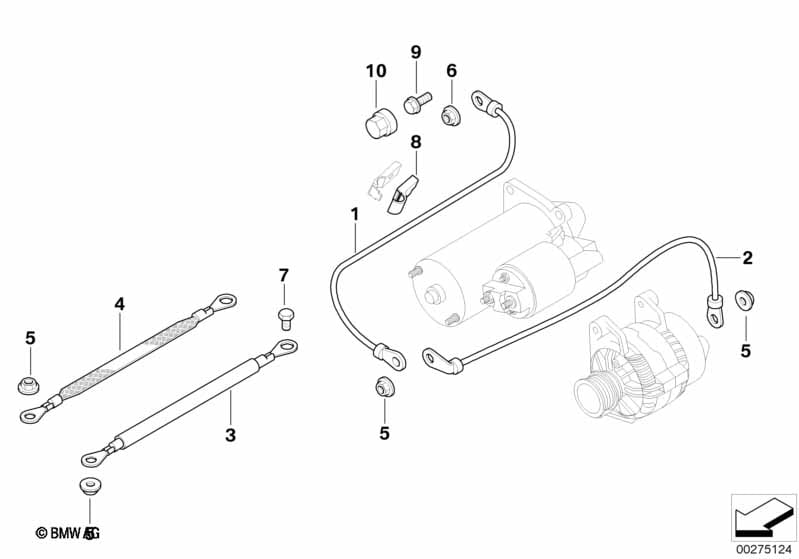

This Cable, starter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable, start motor supp point B+ | 1 | 12421436548 | $39.17 | Shop at ECS Tuning | |||||
| 02 | Cable alternator-starter | 1 | 12421439743 | $19.50 | +core | Shop at ECS Tuning | ||||
| 03 | Ground cable | L=380MM | 1 | 12421737755 | $19.50 | Shop at ECS Tuning | ||||
| 04 | Earth strap | 1 | 09/2002 | 12421437633 | $6.28 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning |
