Battery cable for BMW 3 Series E46 325i (2002)

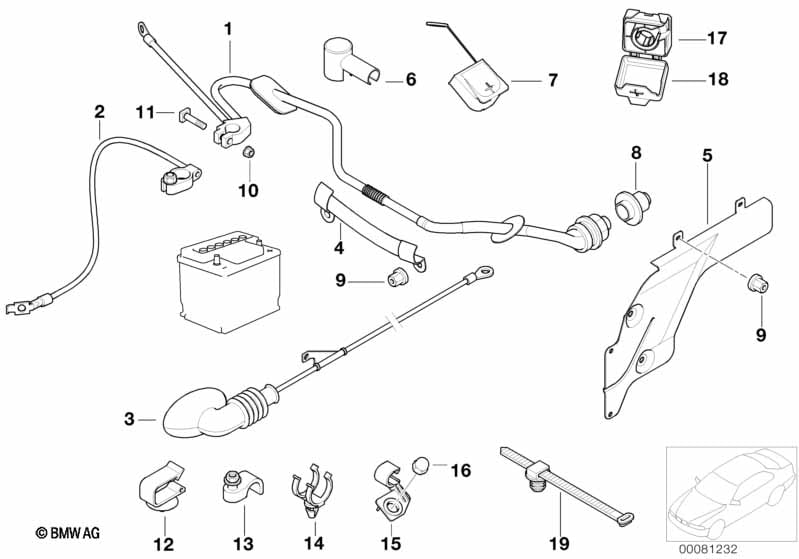

This Battery cable technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | Bracket cable B+ | 1 | 12421707937 | $0.90 | ENDED | Shop at ECS Tuning | ||||
| 16 | Cap nut | M6 | 1 | 12421438388 | $0.63 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Battery cable?
- This technical diagram illustrates the Battery cable within the Engine electrical system group for the 3 Series E46 325i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Bracket cable B+ (Part #12421707937).
- Which models use the hardware listed in this Battery cable?
- The hardware and components featured in the Battery cable are specific to the 3 Series E46 325i produced during 2002. These technical specifications ensure that parts like the Bracket cable B+ (12421707937) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Battery cable assembly?
- Each item in the Battery cable corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Bracket cable B+ by locating its position on the schematic, which then links to the official BMW part number 12421707937 for the Engine electrical system section.
