Engine wiring harness for BMW 2 Series F74 Gran Coupé 228 (2025)

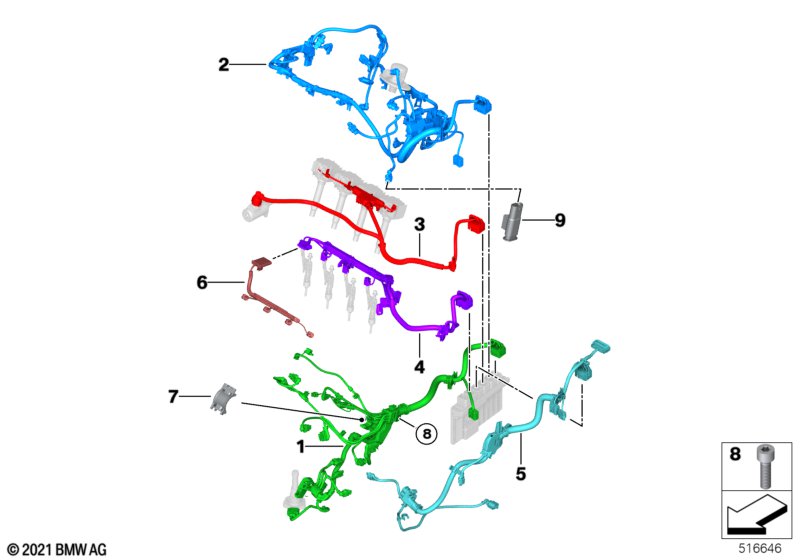

This Engine wiring harness technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 228. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine wiring harn.sensor system mod.1 | 1 | 12515A7A0D3 | Shop at ECS Tuning | ||||||
| 02 | Engine wiring harn.sensor system mod.2 | 1 | 12515A7B934 | Shop at ECS Tuning | ||||||
| 03 | Engine wiring harn.Valvetronic servo. | 1 | 12515A7A0E5 | Shop at ECS Tuning | ||||||
| 04 | Engine wiring harness injection valves | 1 | 12515A7A0E7 | Shop at ECS Tuning | ||||||
| 05 | Engine wiring harness/transm.module | 1 | 12535A7A0F2 | Shop at ECS Tuning | ||||||
| 06 | Adapter cable low-pressure rail | 1 | 12515A7A0E9 | NoS | Shop at ECS Tuning | |||||
| 07 | Wiring duct | 1 | 12528677730 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex nut | AM5-8-ZNNIV SI | 1 | 07129904319 | $0.36 | Shop at ECS Tuning | ||||
| -- | Screw | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 08 | ISA screw | M6X20-8.8-ZNNIV | 2 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
