Control unit box for BMW 5 Series G90 M5 M5 (2025)

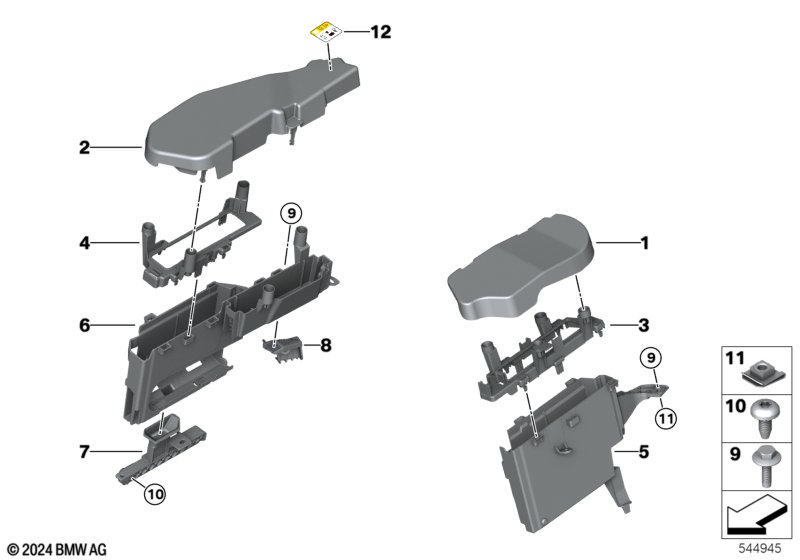

This Control unit box technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | LINKS | 1 | 12905A05EE8 | Shop at ECS Tuning | |||||
| 02 | Cover | RECHTS | 1 | 12907885521 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Label "coolant" | 1 | 17135B3C256 | Shop at ECS Tuning | ||||||
| 03 | Pull-down tensioner, left | LINKS | 1 | 12907885519 | NoS | Shop at ECS Tuning | ||||
| 04 | Hold-down device right | RECHTS | 1 | 12905A05EF4 | Shop at ECS Tuning | |||||
| 05 | Instrument carrier | LINKS | 1 | 12907885520 | NoS | Shop at ECS Tuning | ||||
| 06 | Instrument carrier | RECHTS | 1 | 12907885523 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Blind rivet nut | M8 ZNNIV SI | 1 | 31106852257 | Shop at ECS Tuning | |||||
| -- | Shackle | RECHTS | 1 | 12907885522 | Shop at ECS Tuning | |||||
| 07 | Adapter | RECHTS | 1 | 12905A05EF3 | Shop at ECS Tuning | |||||
| 08 | Holder | RECHTS | 1 | 12905A05EF2 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | 3 | 07149377586 | Shop at ECS Tuning | ||||||
| 10 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| 11 | Clip nut | 1 | 07148654556 | Shop at ECS Tuning | ||||||
| 12 | Label "coolant" | 1 | 17135B3C256 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
