Carburettor 1b2 for BMW 3 Series E21 315 (1982)

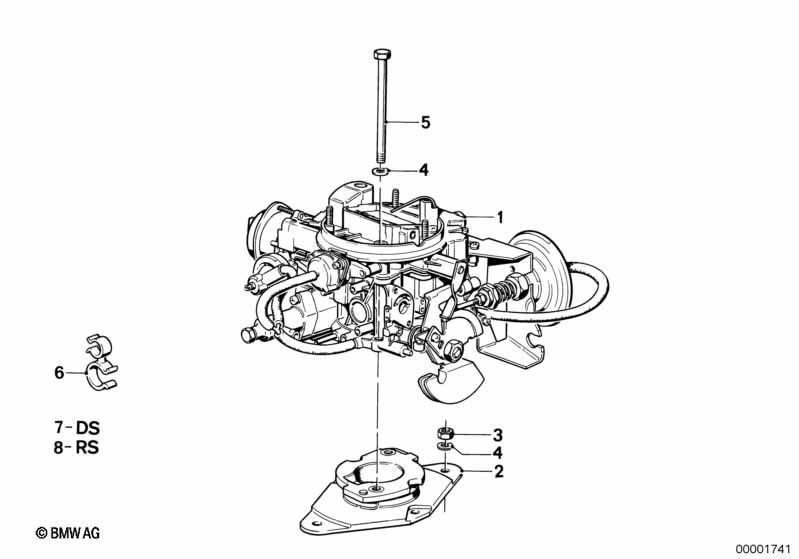

This Carburettor 1b2 technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Carburettor | 1B2 | 1 | 13111278339 | $954.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Flange | 1 | 13111273912 | $48.45 | Shop at ECS Tuning | |||||
| 02 | Flange | 1 | 13111269599 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Spring washer Black | B6-ZN | 6 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Washer | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6-ZNS3 | 6 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex bolt | M6X100 | 2 | 07119912358 | $0.76 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 1 | 13311278232 | $1.73 | Shop at ECS Tuning | |||||
| 07 | Gasket set carburettor | 1B2 | 1 | 13111278343 | $54.96 | ENDED | Shop at ECS Tuning | |||
| 08 | Repair kit carburettor | 1B2 | 1 | 13111278344 | $138.46 | ENDED | Shop at ECS Tuning | |||
| 08 | Repair kit screws | 1B2 | 1 | 13111278345 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 315 Carburettor 1b2?
- This technical diagram illustrates the Carburettor 1b2 within the Fuel preparation system group for the 3 Series E21 315 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the AT-Carburettor (Part #13111278339).
- Which models use the hardware listed in this Carburettor 1b2?
- The hardware and components featured in the Carburettor 1b2 are specific to the 3 Series E21 315 produced during 1982. These technical specifications ensure that parts like the AT-Carburettor (13111278339) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburettor 1b2 assembly?
- Each item in the Carburettor 1b2 corresponds to the numbered list below the illustration. For the 3 Series E21 315, you can identify the AT-Carburettor by locating its position on the schematic, which then links to the official BMW part number 13111278339 for the Fuel preparation system section.
