Automatic choke for BMW 3 Series E21 320 (1979)

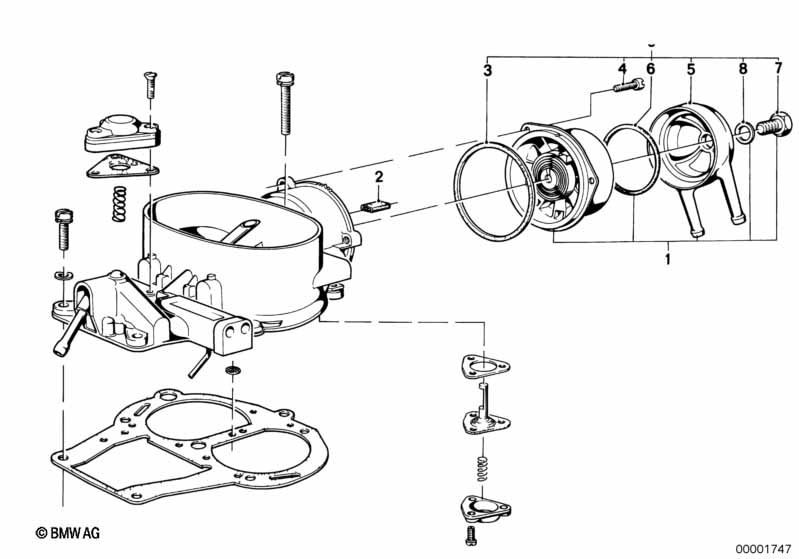

This Automatic choke technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set starter lid | 1 | 06/1976 | 09/1980 | 13111709133 | $189.72 | ENDED | Shop at ECS Tuning | ||
| 02 | Protective hose | 1 | 09/1980 | 13111258956 | ENDED | Shop at ECS Tuning | ||||
| 03 | Insulator | 1 | 09/1980 | 13111278982 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister-head screw | M4X12 | 3 | 09/1980 | 13110539263 | $0.67 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover | 1 | 09/1980 | 13111252697 | ENDED | Shop at ECS Tuning | ||||
| 06 | O-ring | 1 | 09/1980 | 13111252698 | $7.32 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X18-8.8-ZNS3 | 1 | 09/1980 | 07119904146 | $0.65 | Shop at ECS Tuning | |||
| 08 | Gasket ring | 1 | 09/1980 | 13111253435 | $0.86 | Shop at ECS Tuning | ||||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 09 | Set starter lid | 1 | 09/1980 | 13111709135 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
