Electr.idle valve for BMW 5 Series E12 518 (1976)

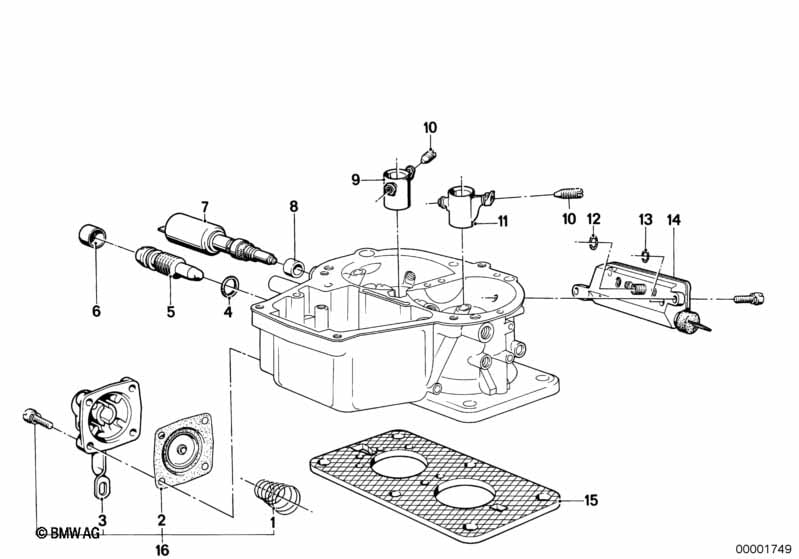

This Electr.idle valve technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Compression spring | 1 | 07/1975 | 09/1980 | 13111258927 | $1.71 | ENDED | Shop at ECS Tuning | ||
| 02 | Diaphragm | 1 | 13110639362 | $34.31 | Shop at ECS Tuning | |||||
| 02 | Kit pump cover | 1 | 05/1976 | 09/1980 | 13111709145 | $101.00 | ENDED | Shop at ECS Tuning | ||
| 02 | Kit pump cover | 1 | 05/1976 | 09/1980 | 13111709145 | $101.00 | ENDED | Shop at ECS Tuning | ||
| 03 | Kit pump cover | 1 | 05/1976 | 08/1978 | 13111709146 | $59.43 | Shop at ECS Tuning | |||
| 04 | O-ring | 12,4X9,0X1,7 | 1 | 07/1975 | 09/1980 | 13111286431 | $7.80 | ENDED | Shop at ECS Tuning | |
| 05 | Air flow-setting screw | 1 | 07/1975 | 09/1980 | 13111265993 | $15.85 | ENDED | Shop at ECS Tuning | ||
| 06 | Cap | BLAU | 1 | 07/1975 | 09/1980 | 13111265510 | $1.57 | Shop at ECS Tuning | ||
| 07 | Electr.idle valve | 45 | 1 | 07/1975 | 08/1978 | 13111262698 | $78.40 | ENDED | Shop at ECS Tuning | |
| For vehicles with Sweden version |
=Yes |
|||||||||
| 07 | Electr.idle valve | 47,5 | 1 | 06/1976 | 09/1980 | 13111261024 | $160.37 | Shop at ECS Tuning | ||
| 07 | Electr.idle valve | 47,5 | 1 | 06/1976 | 09/1980 | 13111261024 | $160.37 | Shop at ECS Tuning | ||
| 08 | Gasket ring | 1 | 07/1975 | 09/1980 | 13111707010 | $2.48 | Shop at ECS Tuning | |||
| 09 | Pre-atomizer | 3,4 | 1 | 07/1975 | 09/1980 | 13111260514 | $18.54 | Shop at ECS Tuning | ||
| 10 | Grub screw | 2 | 07/1975 | 09/1980 | 13111258919 | $13.17 | ENDED | Shop at ECS Tuning | ||
| 11 | Pre-atomizer | 4,0 | 1 | 07/1975 | 09/1980 | 13111260515 | $18.54 | Shop at ECS Tuning | ||
| 15 | Insulator | 1 | 07/1975 | 09/1980 | 13111266764 | $22.10 | Shop at ECS Tuning | |||
| 16 | Kit pump cover | 1 | 05/1976 | 08/1978 | 13111709146 | $59.43 | Shop at ECS Tuning | |||
