Automatic choke for BMW 5 Series E12 520 (1976)

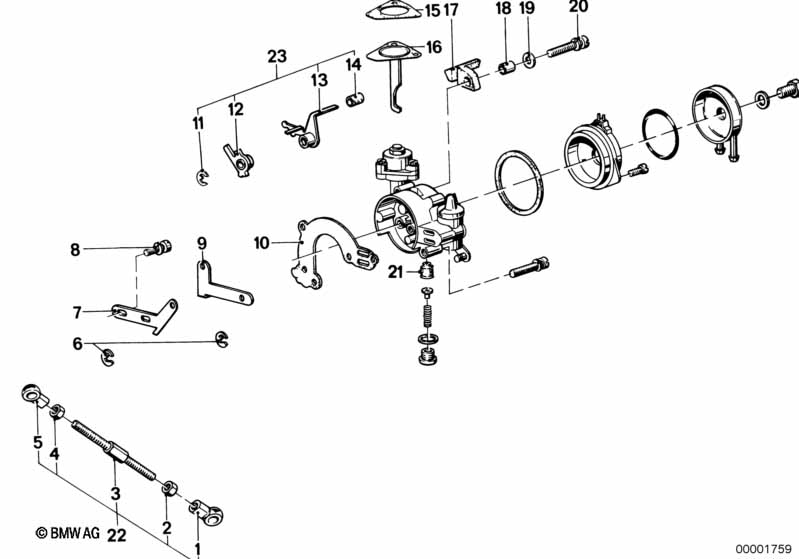

This Automatic choke technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set choke rod | 2 | 13111709152 | $23.72 | Shop at ECS Tuning | |||||
| 02 | Hex nut | 2 | 12/1973 | 13111259608 | ENDED | Shop at ECS Tuning | ||||
| 02 | Set choke rod | 2 | 12/1973 | 13111709152 | $23.72 | Shop at ECS Tuning | ||||
| 03 | Set choke rod | 2 | 12/1973 | 13111709152 | $23.72 | Shop at ECS Tuning | ||||
| 04 | Set choke rod | 2 | 13111709152 | $23.72 | Shop at ECS Tuning | |||||
| 04 | Hex nut | 2 | 12/1973 | 13111259609 | ENDED | Shop at ECS Tuning | ||||
| 05 | Set choke rod | 2 | 13111709152 | $23.72 | Shop at ECS Tuning | |||||
| 05 | Ball joint | 2 | 12/1973 | 13111259611 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket | 2 | 13111258172 | ENDED | Shop at ECS Tuning | |||||
| 11 | Circlip | 2 | 13111260397 | ENDED | Shop at ECS Tuning | |||||
| 12 | Set starter level | 2 | 13111709147 | $67.24 | ENDED | Shop at ECS Tuning | ||||
| 13 | Stopper | 2 | 13111261195 | ENDED | Shop at ECS Tuning | |||||
| 14 | Set starter level | 2 | 13111709147 | $67.24 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gasket | 2 | 13111272900 | ENDED | Shop at ECS Tuning | |||||
| 16 | Diaphragm | 2 | 13111714603 | $31.78 | Shop at ECS Tuning | |||||
| 17 | Stopper | 2 | 13111260919 | ENDED | Shop at ECS Tuning | |||||
| 18 | Spacer sleeve | 2 | 13111260922 | ENDED | Shop at ECS Tuning | |||||
| 19 | Washer | 2 | 13111259651 | ENDED | Shop at ECS Tuning | |||||
| 20 | Fillister-head screw | 2 | 13111258175 | ENDED | Shop at ECS Tuning | |||||
| 21 | Diaphragm | 2 | 13111289655 | $11.38 | ENDED | Shop at ECS Tuning | ||||
| 22 | Set choke rod | 2 | 12/1973 | 13111709152 | $23.72 | Shop at ECS Tuning | ||||
| 23 | Set starter level | 2 | 13111709147 | $67.24 | ENDED | Shop at ECS Tuning |
