Mixture control for BMW 5 Series E12 528 (1976)

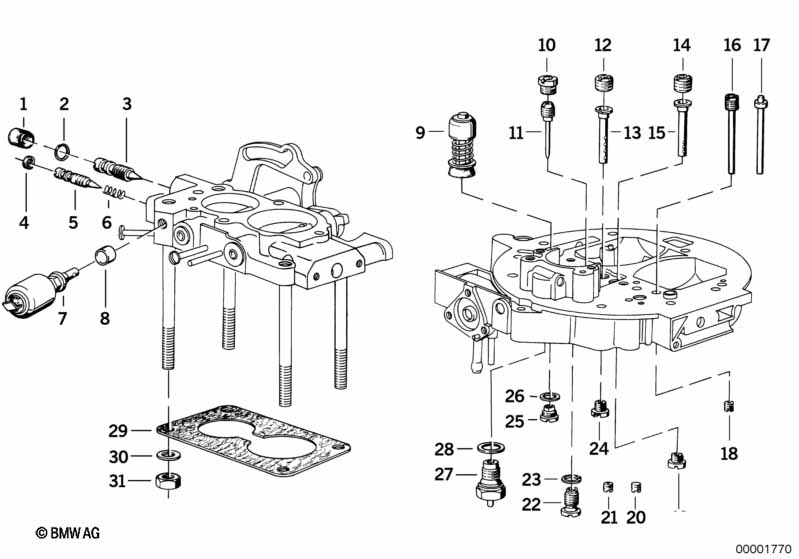

This Mixture control technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Idling mixture screw | 2 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 11 | Idling jet | 42,5 | 2 | 08/1975 | 13111261215 | $47.15 | ENDED | Shop at ECS Tuning | ||
| 31 | Hex nut | M8-8-ZNS3 | 8 | 09/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 31 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
