Carburetor mounting parts for BMW 3 Series E21 320 (1979)
This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover carburettor | 1 | 08/1979 | 13111268265 | $845.37 | ENDED | Shop at ECS Tuning | |||
| 02 | Jet | 97,5 | 2 | 13111264914 | $4.13 | Shop at ECS Tuning | ||||
| 03 | Pipe | 1 | 13111273548 | $2.23 | ENDED | Shop at ECS Tuning | ||||
| 04 | Additional air jet | 100 | 1 | 08/1979 | 13111268501 | ENDED | Shop at ECS Tuning | |||
| 05 | Idling jet | 42,5 | 2 | 13111261215 | $47.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Idle air jet | 110 | 2 | 08/1979 | 13111268500 | ENDED | Shop at ECS Tuning | |||
| 07 | Parts set spring | 1 | 13111273917 | $7.04 | Shop at ECS Tuning | |||||
| 08 | Pin | 1 | 13111264912 | ENDED | Shop at ECS Tuning | |||||
| 08 | Parts set spring | 1 | 13111273917 | $7.04 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | 1 | 13111264913 | ENDED | Shop at ECS Tuning | |||||
| 10 | Coupling yoke | 1 | 13111271425 | ENDED | Shop at ECS Tuning | |||||
| 13 | Split pin | 1X8 | 1 | 07119945010 | ENDED | Shop at ECS Tuning | ||||
| 14 | Circlip | 2,3 | 1 | 07119932805 | $0.28 | Shop at ECS Tuning | ||||
| 15 | Gasket | 1 | 13111264906 | $4.46 | Shop at ECS Tuning | |||||
| 16 | Plate | 1 | 13111264907 | ENDED | Shop at ECS Tuning | |||||
| 18 | Absorber | 1 | 13111268272 | $71.83 | Shop at ECS Tuning | |||||
| 19 | Connection rod | 1 | 08/1979 | 13111264917 | $3.40 | ENDED | Shop at ECS Tuning | |||
| 20 | Hose | 1 | 13111272620 | $3.01 | ENDED | Shop at ECS Tuning | ||||
| 22 | Gasket | 1 | 13111286464 | $7.68 | Shop at ECS Tuning | |||||
| 23 | Parts set spring | 1 | 13111273917 | $7.04 | Shop at ECS Tuning | |||||
| 24 | Choke rod set | 1 | 13111705879 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Carburetor mounting parts?

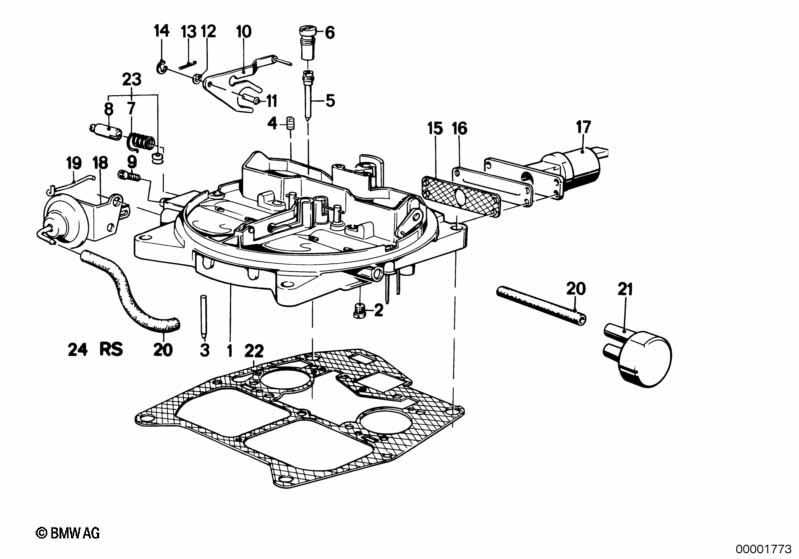

- This technical diagram illustrates the Carburetor mounting parts within the Fuel preparation system group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Cover carburettor (Part #13111268265).
- Which models use the hardware listed in this Carburetor mounting parts?
- The hardware and components featured in the Carburetor mounting parts are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Cover carburettor (13111268265) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor mounting parts assembly?
- Each item in the Carburetor mounting parts corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Cover carburettor by locating its position on the schematic, which then links to the official BMW part number 13111268265 for the Fuel preparation system section.
