Mixture control for BMW 7 Series E23 728 (1979)

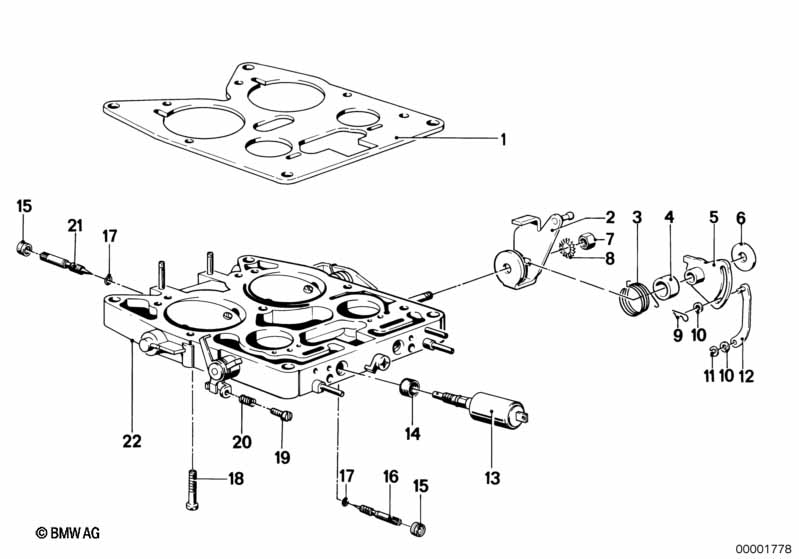

This Mixture control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insulator | 1 | 13111709904 | Shop at ECS Tuning | ||||||
| 02 | Lever | 1 | 13111273906 | ENDED | Shop at ECS Tuning | |||||
| 03 | Retainer spring | 1 | 13111264695 | $5.86 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bush | 1 | 13111273902 | $3.79 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lever | 1 | 13111273907 | $9.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | 1 | 13111273908 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex nut | M8X1 | 1 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 08 | Circlip | 8,4X13 | 1 | 13541267663 | ENDED | Shop at ECS Tuning | ||||
| 09 | Clamp | 1 | 13111258216 | ENDED | Shop at ECS Tuning | |||||
| 10 | Washer | 3 | 13111273909 | ENDED | Shop at ECS Tuning | |||||
| 11 | Lock Ring | 2 | 13111258170 | ENDED | Shop at ECS Tuning | |||||
| 12 | Connection rod | 1 | 13111271438 | $6.42 | ENDED | Shop at ECS Tuning | ||||
| 13 | Electr.idle valve | 50 | 2 | 13111260516 | $314.87 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | 1 | 13111707010 | $2.48 | Shop at ECS Tuning | |||||
| 15 | Blind plug | BLAU | 4 | 13111265508 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Idling mixture screw | 2 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 17 | Idling mixture screw | 2 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fillister-head screw | 3 | 13111261052 | ENDED | Shop at ECS Tuning | |||||
| 19 | Fillister-head screw | 1 | 13111268504 | ENDED | Shop at ECS Tuning | |||||
| 20 | Compression spring | 1 | 13111268503 | ENDED | Shop at ECS Tuning | |||||
| 21 | Idling mixture screw | 2 | 13111268230 | ENDED | Shop at ECS Tuning | |||||
| 22 | Throttle housing | 1 | 13111278829 | ENDED | Shop at ECS Tuning |
