Automatic choke for BMW 5 Series E12 528 (1977)

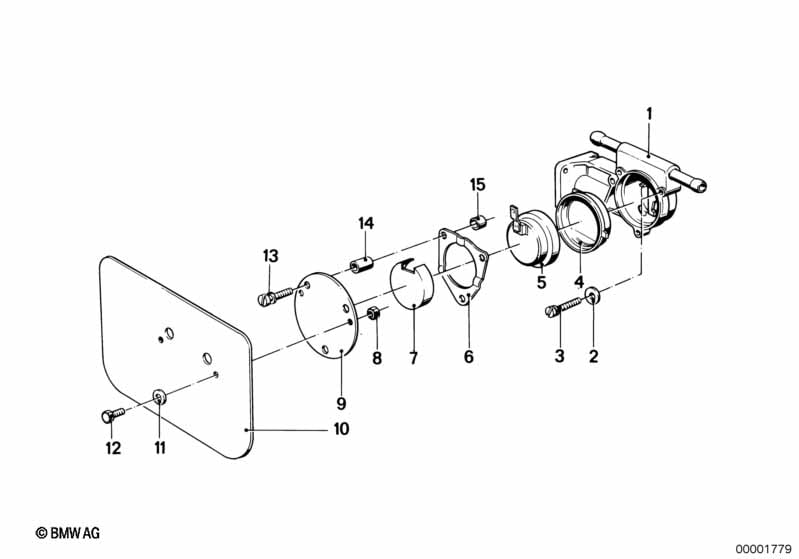

This Automatic choke technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Choke body | 1 | 08/1976 | 09/1979 | 13111268514 | ENDED | Shop at ECS Tuning | |||
| 04 | Cap | 1 | 08/1976 | 09/1979 | 13111268533 | ENDED | Shop at ECS Tuning | |||
| 05 | Starter lid | 1 | 08/1976 | 09/1979 | 13111268534 | $100.72 | ENDED | Shop at ECS Tuning | ||
| 06 | Supporting ring | 1 | 08/1976 | 09/1979 | 13111264893 | ENDED | Shop at ECS Tuning | |||
| 07 | Protective COVER | 1 | 08/1976 | 09/1979 | 13111265477 | ENDED | Shop at ECS Tuning | |||
| 08 | Self-locking hex nut | M5 | 2 | 08/1976 | 09/1979 | 63142322408 | $0.26 | ENDED | Shop at ECS Tuning | |
| 09 | Covering plate | 1 | 08/1976 | 09/1979 | 13111264551 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | 1 | 08/1976 | 09/1979 | 13111271825 | ENDED | Shop at ECS Tuning | |||
| 11 | Washer | 5,3 | 2 | 08/1976 | 09/1979 | 07119936416 | $0.40 | ENDED | Shop at ECS Tuning | |
| 12 | Hex bolt | M5X10 | 2 | 08/1976 | 09/1979 | 07119913218 | $0.12 | Shop at ECS Tuning | ||
| 13 | Fillister-head screw | 3 | 08/1976 | 09/1979 | 13111258189 | ENDED | Shop at ECS Tuning | |||
| 14 | Spacer sleeve | 3 | 08/1976 | 09/1979 | 13111264550 | ENDED | Shop at ECS Tuning | |||
| 15 | Spacer sleeve | 3 | 08/1976 | 09/1979 | 13111264894 | ENDED | Shop at ECS Tuning |
