Automatic choke for BMW 7 Series E23 728 (1978)

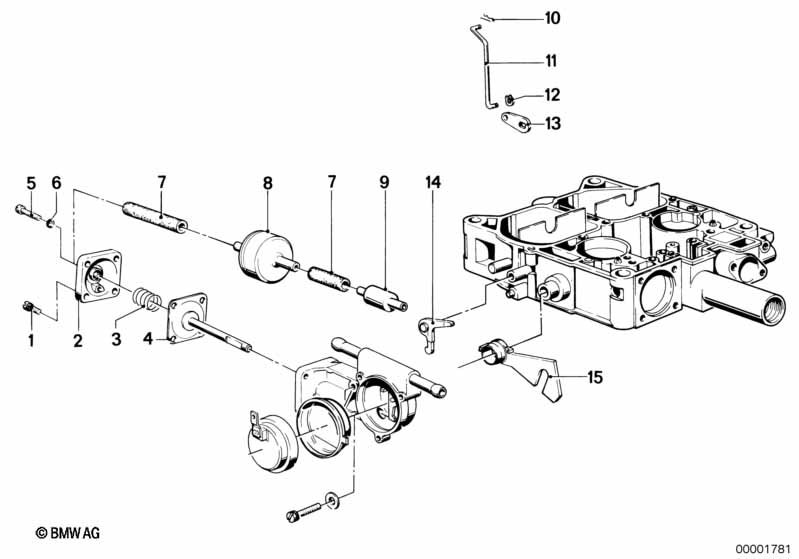

This Automatic choke technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister-head screw | 4 | 13111269391 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 13111264888 | ENDED | Shop at ECS Tuning | |||||
| 03 | Compression spring | 1 | 13111264887 | ENDED | Shop at ECS Tuning | |||||
| 04 | Diaphragm | 1 | 13111268520 | $20.31 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adjusting screw | 1 | 13111264889 | Shop at ECS Tuning | ||||||
| 06 | Idling mixture screw | 1 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Vacuum hose | X | 11731267004 | ENDED | Shop at ECS Tuning | |||||
| 08 | Retarding valve | 1 | 13111266000 | $6.03 | ENDED | Shop at ECS Tuning | ||||
| 09 | Expansion tank | 1 | 13119064609 | ENDED | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 13111258216 | ENDED | Shop at ECS Tuning | |||||
| 11 | Connection rod | 1 | 13111264882 | ENDED | Shop at ECS Tuning | |||||
| 12 | Lock Ring | 1 | 13110639180 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 13 | Lever | 1 | 13111264881 | ENDED | Shop at ECS Tuning | |||||
| 14 | Lever | 1 | 13111264884 | $9.15 | ENDED | Shop at ECS Tuning | ||||
| 15 | Lever | 1 | 13111271458 | $8.93 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
