Automatic choke for BMW 5 Series E12 525 (1981)

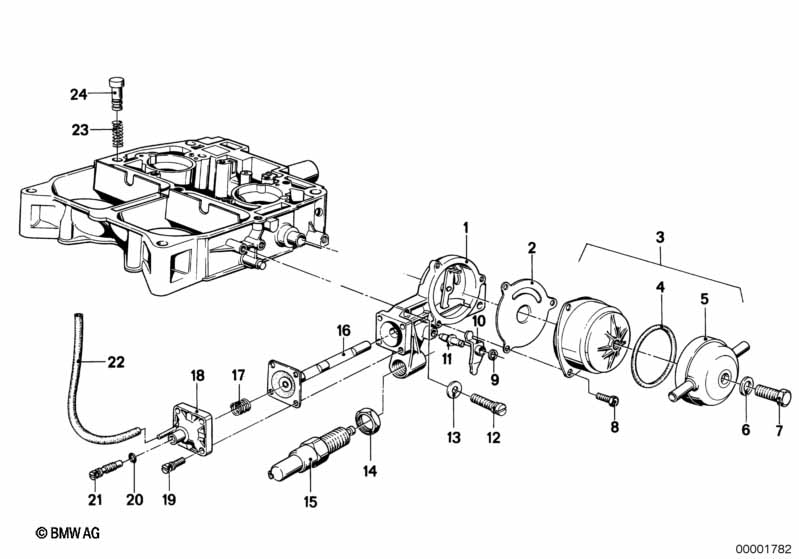

This Automatic choke technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Choke body | 1 | 09/1979 | 13111276331 | ENDED | Shop at ECS Tuning | ||||
| 02 | Plate | 1 | 09/1979 | 13111268249 | ENDED | Shop at ECS Tuning | ||||
| 03 | Starter lid | 1 | 09/1979 | 13111273932 | ENDED | Shop at ECS Tuning | ||||
| 04 | O-ring | 1 | 09/1979 | 13111252698 | $7.32 | Shop at ECS Tuning | ||||
| 05 | Water connector | 1 | 09/1979 | 13111268251 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 1 | 09/1979 | 13111253435 | $0.86 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | 1 | 09/1979 | 13111258883 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | 3 | 09/1979 | 13111268252 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lock Ring | 1 | 09/1979 | 13111258170 | ENDED | Shop at ECS Tuning | ||||
| 10 | Set starter level | 1 | 09/1979 | 13111707003 | $51.11 | Shop at ECS Tuning | ||||
| 11 | Bolt | 1 | 09/1979 | 13111288030 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fillister-head screw | 2 | 09/1979 | 13111264890 | ENDED | Shop at ECS Tuning | ||||
| 13 | Washer | 2 | 09/1979 | 13111264891 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex nut | 1 | 09/1979 | 13111268246 | ENDED | Shop at ECS Tuning | ||||
| 15 | Actuator | 1 | 09/1979 | 13111273930 | $154.51 | Shop at ECS Tuning | ||||
| 16 | Diaphragm | 1 | 09/1979 | 13111268244 | $23.16 | Shop at ECS Tuning | ||||
| 17 | Compression spring | 1 | 09/1979 | 13111273928 | Shop at ECS Tuning | |||||
| 18 | Cover | 1 | 09/1979 | 13111264888 | ENDED | Shop at ECS Tuning | ||||
| 19 | Fillister-head screw | 4 | 09/1979 | 13111269391 | ENDED | Shop at ECS Tuning | ||||
| 20 | Idling mixture screw | 1 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 21 | Adjusting screw | 1 | 09/1979 | 13111264889 | Shop at ECS Tuning | |||||
| 22 | Hose | 1 | 09/1979 | 13111273914 | $8.45 | ENDED | Shop at ECS Tuning | |||
| 23 | Compression spring | 1 | 09/1979 | 13111268263 | Shop at ECS Tuning | |||||
| 24 | Piston | 1 | 09/1979 | 13111268264 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
