Float assy/control box for BMW 7 Series E23 728 (1979)

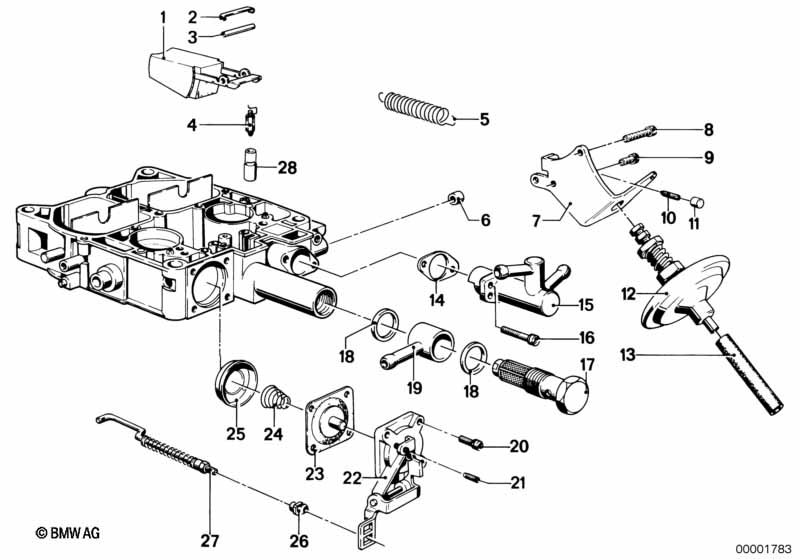

This Float assy/control box technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set float assy | 1 | 13119063000 | $62.21 | ENDED | Shop at ECS Tuning | ||||
| 02 | Holder | 1 | 13111264879 | Shop at ECS Tuning | ||||||
| 03 | Float axis | 1 | 13111264878 | Shop at ECS Tuning | ||||||
| 04 | Float needle | 1 | 13111289654 | $30.00 | Shop at ECS Tuning | |||||
| 05 | Tension spring | 1 | 13111264900 | ENDED | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 1 | 13111264896 | ENDED | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 13111268259 | ENDED | Shop at ECS Tuning | |||||
| 10 | Grub screw | 1 | 13111268260 | ENDED | Shop at ECS Tuning | |||||
| 11 | Cap | BLAU | 1 | 13111265510 | $1.57 | Shop at ECS Tuning | ||||
| 12 | Control box | 1 | 13111263968 | $124.99 | ENDED | Shop at ECS Tuning | ||||
| 13 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 14 | Gasket | 1 | 13111264902 | $2.29 | Shop at ECS Tuning | |||||
| 15 | Set additional thermo-starting device | 1 | 13111707007 | $145.39 | Shop at ECS Tuning | |||||
| 17 | Hollow bolt | 1 | 13111714537 | $42.41 | ENDED | Shop at ECS Tuning | ||||
| 18 | Gasket ring | 2 | 13111264876 | Shop at ECS Tuning | ||||||
| 19 | Connector | 1 | 13111264875 | $11.38 | ENDED | Shop at ECS Tuning | ||||
| 21 | Grub screw | 1 | 13111707002 | ENDED | Shop at ECS Tuning | |||||
| 22 | Pump cover | 1 | 13111707001 | $39.90 | ENDED | Shop at ECS Tuning | ||||
| 23 | Diaphragm | 1 | 13111264870 | $19.64 | ENDED | Shop at ECS Tuning | ||||
| 24 | Compression spring | 1 | 13111264869 | ENDED | Shop at ECS Tuning | |||||
| 25 | Cap | 1 | 13111264868 | Shop at ECS Tuning | ||||||
| 26 | Guide bush | 1 | 13111264873 | ENDED | Shop at ECS Tuning | |||||
| 27 | Connection rod | 1 | 13111265181 | ENDED | Shop at ECS Tuning | |||||
| 28 | Needle sleeve | 1 | 13119056505 | $5.88 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Float assy/control box?
- This technical diagram illustrates the Float assy/control box within the Fuel preparation system group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Set float assy (Part #13119063000).
- Which models use the hardware listed in this Float assy/control box?
- The hardware and components featured in the Float assy/control box are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Set float assy (13119063000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Float assy/control box assembly?
- Each item in the Float assy/control box corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Set float assy by locating its position on the schematic, which then links to the official BMW part number 13119063000 for the Fuel preparation system section.
