Cover carburettor for BMW 5 Series E12 528 (1976)
This Cover carburettor technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover carburettor | 1 | 08/1976 | 13111268733 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | 2 | 08/1976 | 13111264921 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | 3 | 08/1976 | 13111258174 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | 2 | 08/1976 | 13111260918 | ENDED | Shop at ECS Tuning | ||||
| 05 | Screw | 1 | 08/1976 | 13110639149 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister-head screw | 1 | 08/1976 | 13111264913 | ENDED | Shop at ECS Tuning | ||||
| 07 | Absorber | 1 | 08/1976 | 13111268272 | $71.83 | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | 1 | 08/1976 | 13111264897 | ENDED | Shop at ECS Tuning | ||||
| 10 | Connection rod | 1 | 08/1976 | 09/1979 | 13111264917 | $3.40 | ENDED | Shop at ECS Tuning | ||
| 11 | Parts set spring | 1 | 08/1976 | 13111273917 | $7.04 | Shop at ECS Tuning | ||||
| 12 | Parts set spring | 1 | 08/1976 | 13111273917 | $7.04 | Shop at ECS Tuning | ||||
| 14 | Gasket | 1 | 08/1976 | 13111264906 | $4.46 | Shop at ECS Tuning | ||||
| 15 | Plate | 1 | 08/1976 | 13111264907 | ENDED | Shop at ECS Tuning | ||||
| 16 | Fillister-head screw | 4 | 08/1976 | 09/1979 | 13111261053 | ENDED | Shop at ECS Tuning | |||
| 17 | Gasket | 1 | 08/1976 | 13111286464 | $7.68 | Shop at ECS Tuning | ||||
| 18 | Parts set spring | 1 | 08/1976 | 13111273917 | $7.04 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Cover carburettor?

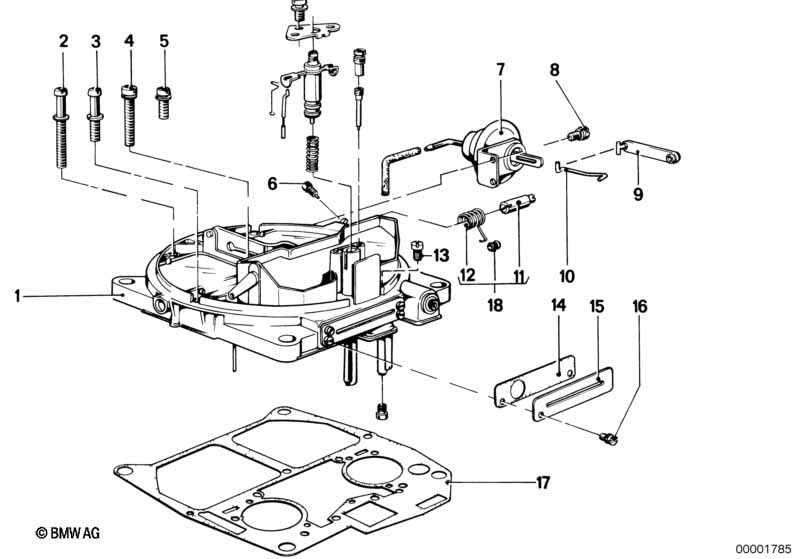

- This technical diagram illustrates the Cover carburettor within the Fuel preparation system group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Cover carburettor (Part #13111268733).
- Which models use the hardware listed in this Cover carburettor?
- The hardware and components featured in the Cover carburettor are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Cover carburettor (13111268733) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover carburettor assembly?
- Each item in the Cover carburettor corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Cover carburettor by locating its position on the schematic, which then links to the official BMW part number 13111268733 for the Fuel preparation system section.
