Mixture control for BMW 5 Series E12 528 (1976)

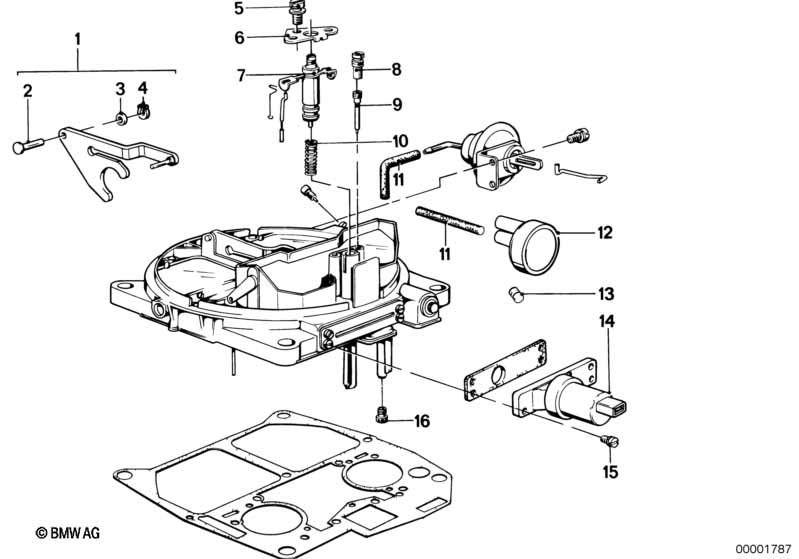

This Mixture control technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coupling yoke | 1 | 08/1976 | 13111271425 | ENDED | Shop at ECS Tuning | ||||
| 04 | Circlip | 2,3 | 1 | 08/1976 | 07119932805 | $0.28 | Shop at ECS Tuning | |||
| 05 | Fillister-head screw | 1 | 08/1976 | 09/1979 | 13111258940 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering plate | 1 | 08/1976 | 09/1979 | 13111264910 | ENDED | Shop at ECS Tuning | |||
| 07 | Piston with needle | 1 | 08/1976 | 13111289040 | $31.81 | ENDED | Shop at ECS Tuning | |||
| 08 | Idle air jet | 115 | 2 | 08/1976 | 13111264920 | $4.91 | ENDED | Shop at ECS Tuning | ||
| 09 | Idling jet | 42,5 | 2 | 08/1976 | 13111261215 | $47.15 | ENDED | Shop at ECS Tuning | ||
| 10 | Compression spring | 1 | 08/1976 | 13111268559 | $1.55 | Shop at ECS Tuning | ||||
| 11 | Hose | 1 | 08/1976 | 13111272620 | $3.01 | ENDED | Shop at ECS Tuning | |||
| 13 | Parts set spring | 1 | 08/1976 | 13111273917 | $7.04 | Shop at ECS Tuning | ||||
| 16 | Jet | 97,5 | 2 | 08/1976 | 13111264914 | $4.13 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528 Mixture control?
- This technical diagram illustrates the Mixture control within the Fuel preparation system group for the 5 Series E12 528 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Coupling yoke (Part #13111271425).
- Which models use the hardware listed in this Mixture control?
- The hardware and components featured in the Mixture control are specific to the 5 Series E12 528 produced during 1976. These technical specifications ensure that parts like the Coupling yoke (13111271425) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mixture control assembly?
- Each item in the Mixture control corresponds to the numbered list below the illustration. For the 5 Series E12 528, you can identify the Coupling yoke by locating its position on the schematic, which then links to the official BMW part number 13111271425 for the Fuel preparation system section.
