Lever-shaft assy for BMW 7 Series E23 728 (1978)

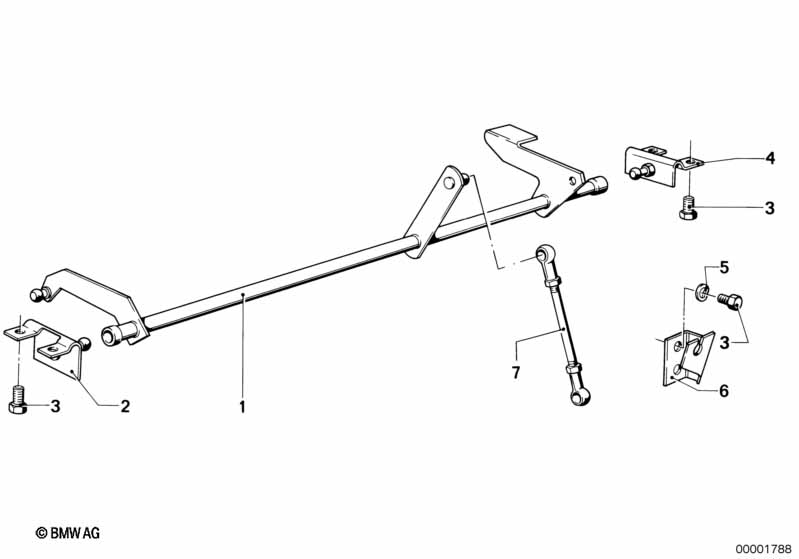

This Lever-shaft assy technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lever-shaft assy | 1 | 13211263670 | ENDED | Shop at ECS Tuning | |||||
| 02 | Supporting bracket | 1 | 13211263675 | $2.87 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X12-8.8-ZNNIV | 6 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Supporting bracket | 1 | 13211263677 | $3.89 | ENDED | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Bracket f Bowden cable | 1 | 13211264579 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pull rod | 1 | 13211263822 | $9.71 | ENDED | Shop at ECS Tuning |
